Underground Modular Tank
STORAGE TANKS

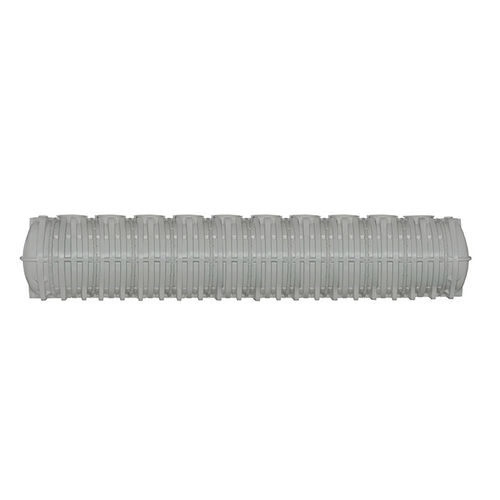

The NTG Modular Tank’s container has a capacity starting at 7,000 liters till 35,000 liters. Its unique multiple-stage assembly guarantees its quality and strength.
Underground Modular Tank
Type - Capacity (L) - Diameter (mm) - Length (mm)
1 MODULE - 7000 - 2100 - 2636
2 MODULES - 10000 - 2100 - 3636
3 MODULES - 13000 - 2100 - 4636
4 MODULES - 16000 - 2100 - 5636
5 MODULES - 20000 - 2100 - 6636
6 MODULES - 23000 - 2100 - 7636
7 MODULES - 26000 - 2100 - 8636
8 MODULES - 29000 - 2100 - 9636
9 MODULES - 32000 - 2100 - 10636
10 MODULES - 35000 - 2100 - 11636
Underground Modular Tank - Dome - Module
Type - Capacity (L) - a (mm) - b (mm)
DOME - 2000 - 818 - 2100
MODULE - 3000 - 1000 - 2100
Nassar Techno Group offers the largest range of polyethylene tanks in the region. NTG’s Triple-Layer Tanks maintain the temperature and purity of the water inside them.
Nassar Techno Group developed an innovative external solid-skin layer to protect the fluid inside the tanks from shocks and UV light. The tanks’ second layer, made of polyethylene foam, provides thermal insulation and adds strength to the tanks.The internal layer is free from colorants.
NTG’s Triple-Layer Tanks are German DIN certified by MFPA Weimar in Germany (The German Official Testing Center), as being harmless for the storage of drinking water and food (Test report nr. B 44.14.054.01 en). They come with a 20-year warranty.
SYSTEM SUMMARY
- Underground And Above Ground Installation
- Minimum Capacity Starting At 7,000 Liters
- Unlimited Capacity With Its Multi-Stage Assembly
- Guaranteed Polyethylene Quality And Strength
