Electrical distribution bollard VM02

concretestainless steelretractable

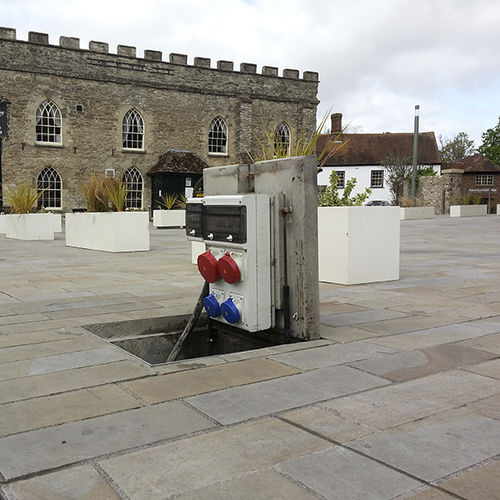

The supply flip lid unit VM02 is part of the New VMR retractable power tower family for the distribution of energy and other complementary services, both when it is open and when the cover is closed, thanks to its special rubber door for the cable outlet . The VM02 service distribution unit proves to be extremely useful when there is little space and every centimeter needs to be exploited: small marketplaces, workshops, industrial warehouses, hangars, gyms are just few examples of contexts in which optimizing spaces is high-performant choice. The supply unit VM02 is available in different formats: 40x40, 50x50, 60x60 and 70x50. It is composed by its concrete box and by a stainless steel structure with dual gas actuator for opening. Technical details GENERAL DESCRIPTION The VM02 retractable power tower by New VMR for the distribution of electricity and complementary services, such as water, compressed air, data transmission and audio systems, can also be used with the cover in rest position, using the special rubberized door for cable outlet. The unit is composed of a stainless steel mechanical structure and a RBK 300 concrete containment box. The manhole cover is made of stainless steel and is available as to fill or with an almond finishing. Its opening is eased by a pivot partially removable from the lid surface and by the double gas actuator springs; while, its closing is guaranteed by a safety bronzed bayonet lock in AISI304 stainless steel operated by a square or triangular key.
