Protection waterproofing membrane CDM 508 Mesh

drainagefor wallfor tunnel

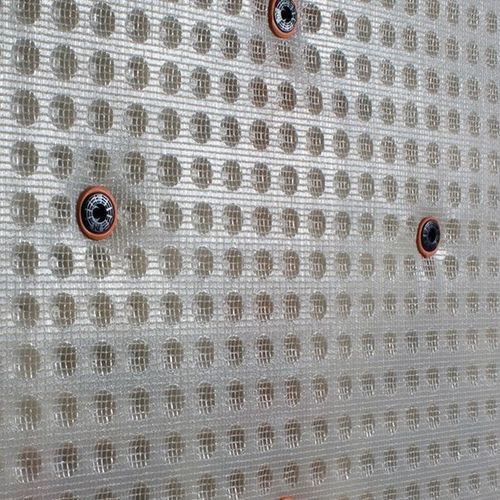

Newton CDM 508 Mesh is a high quality, 8mm meshed cavity drain waterproofing membrane for use within the Newton CDM System, our internally applied waterproofing system that also includes drainage and pumping systems. The strong polyethylene mesh is thermally welded to the face of the membrane during manufacturing to provide a key for plasters and renders. CDM 508 Mesh is suitable for the waterproofing of earth retained walls and vaulted soffits and is guaranteed against deterioration for 30 years, with a life expectancy of the design life of the building (DIN 9001:2000), and supported by BBA Agrément Certificate 22/6357. CDM 508 Mesh is inert and non-polluting to drinking water, highly resistant to water, alkalines, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also rot-proof, and resistant to bacteria, fungi and small organisms. Key Benefits Does not require extensive and damaging preparation to the wall surface Speed of installation Capable of delivering an environment to all levels within a Grade 3 environment to BS 8102:2022 Meshed surface for application of plasters/renders
