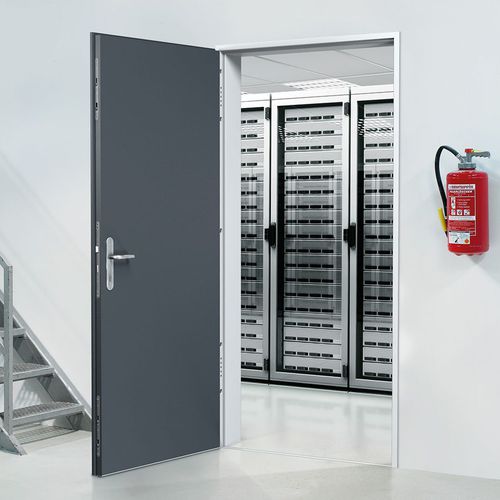

Interior door E-S 11

sheet steelgalvanized steelswing

THE COMPREHENSIVE MODELS Single leaf full panel door with 11-fold safeguards for indoor and outdoor use. Fire resistance compliant T30 (standard equipped with overhead door closer) for indoor use only. Door panel with rebate on 3 sides, homely thick rebate, filled with insulating mineral wool. Five securing pins. YOUR ADVANTAGES AT A GLANCE! Optimum protection with 11 point lock RC4 safety tested to EN 1627 5 securing pins per leaf Security PC mortice lock with drawback latch Security profile cylinder (drill-protected) Thick rebate adds a homely touch Leaf thickness approx. 51 mm Door panel standard galvanized and primed (powder coated, RAL 9016). Optional Super Color: Textured powder coating primer in steel blue, ruby red, fir green, light grey, window grey, anthracite grey, nut brown, sepia brown, platinum white, carmine red, olive green and yellow grey. Optional Super Dekor: up to BR 1250 x 2250 mm, wood decors for inside use in maple, pear, cherry, walnut, natural beech, light oak or white ash. Optionally available in RAL of your choice. Frame galvanized and EC-primed, similar to RAL 7035, optionally available in RAL of your choice. Versions Burglar resistant as per EN 1627 RC4 (11-fold safeguards). Optionally T30 fire retardant. Available with soundproofing, heat insulation and smoke protection as described under E-S 9. Hardware 2 hinge plates, three-dimensionally adjustable, with hinge lock. Standard lower acoustic threshold seal, aluminium security knob-lever set as per DIN 18257 ES 2 ZA (E-S 11: ES 3 ZA), long plate with cylinder distance 92 mm, drill-protected SI profile cylinder as per DIN 18252 BS (40 + 35 mm), safety card and 3 keys.
