THE SOLID MODELS
Single and double full panel door units for indoor and outdoor use. 62 mm door panel, rebate on 3 sides, with homely thick rebate. Sheet thickness 1.5 mm. Internal reinforcement for door closer on hinge side (on active leaf and inactive leaf on double door units).
YOUR ADVANTAGES AT A GLANCE!
RC3 safety tested to EN 1627
3 securing pins per leaf
Security PC mortice lock with drawback latch, with special bolt.
Inactive leaf lock (rebate retracting bolt) / (2 leaf)
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 63 mm

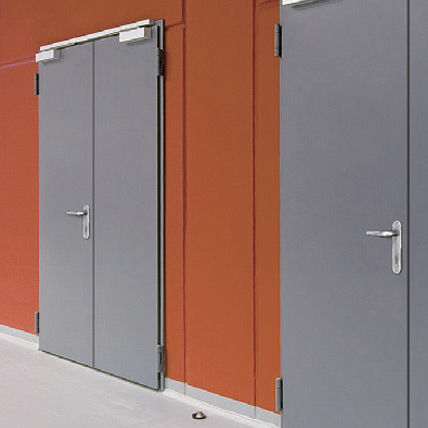

Single and double full panel door units for indoor and outdoor use. 62 mm door panel, rebate on 3 sides, with homely thick rebate. Sheet thickness 1.5 mm. Internal reinforcement for door closer on hinge side (on active leaf and inactive leaf on double door units).
Door panel and frame standard galvanized and primed (powder coated, RAL 9016).
E-S 63-1: Door panel, frame and hinges optionally available with design finish.
Versions
Burglar resistant as per EN 1627 RC3. Filled with mineral wool for heat insulation. Optional soundproofing 35 dB (1 leaf) or 32 dB (2 leaf) tested to EN ISO 140-3, assessed as per EN ISO 717-1.
E-S 63-1 also available as a wall flap measuring 500 x 500 to 1250 x 1750 mm.
Hardware
Per leaf: two 3-part hinges KO 160/16/4 with ball bearing and hinge plug safeguards.
3 securing pins per leaf, security PC mortice lock with drawback latch as per DIN 18250, class 3, with special bolt. Fire resistant aluminium security knob-lever set as per DIN 18257 ES 2 ZA with long plate and SI profile cylinder as per DIN 18252 P2 BZ (45 + 40 mm), safety card and 3 keys.
