Laminated glass panel OKALUX HPI
double-glazedinsulatingpatterned

laminated glass panel
laminated glass panel
laminated glass panel
laminated glass panel
laminated glass panel
laminated glass panel
laminated glass panel
Add to favorites
Compare this product


Characteristics

Type
laminated, double-glazed
Technical characteristics
insulating
Appearance
patterned, translucent, opaque
Applications
for facade
Other characteristics
custom
Length

Min.: 0 mm (0 in)

Max.: 4,000 mm (157 in)

Width

Min.: 0 mm (0 in)

Max.: 2,000 mm (79 in)

Description

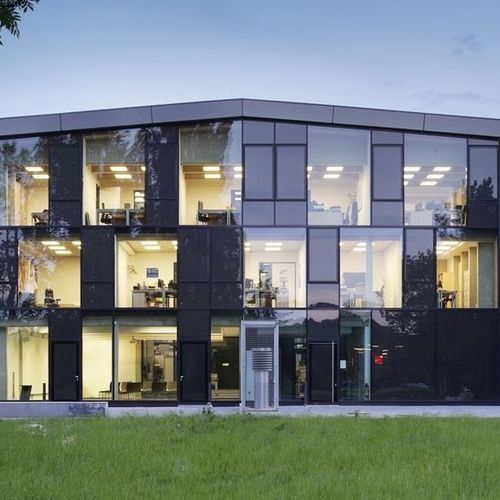

OKALUX HPI High Performance Insulating Glass Module consists of a vacuum insulating panel built into the cavity of an insulating glass module. It can be combined and laminated with numerous design inserts. The vacuum insulating panel enables excellent heat insulation in very narrow build-ups. The opaque insulating glass modules can be mounted in areas of the façade in which incidental light is not wanted or possible – i.e. in front of storey ceilings, in parapet or peripheral areas – without having to interrupt the façade System. OKALUX HPI can significantly improve the energy balance of a building shell. Moreover, construction and assembly costs are reduced and building processes simplified due to the narrow build-up. There are no maintenance or cleaning costs as the mounting is in the cavity. OKALUX HPI is available in a large variety of designs and can be combined with most of the product groups of OKALUX, thereby facilitating a uniform facade appearance.
