Insulating glass panel O+

fire protectiondouble-glazedprinted

Product Details
Light-diffusing double-glazing insulating glass with optimized Ug-value.

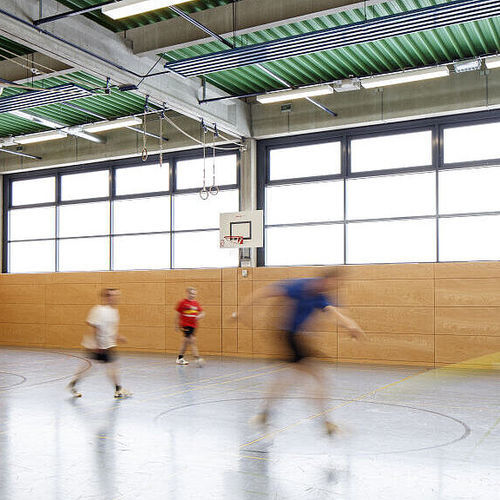

OKALUX+ light-diffusing insulating glass offers numerous advantages: The capillary slab in the cavity allows for an even and shadow-free illumination with daylight deep into the room. The sun and glare-protection are very good, the heat insulation excellent and the transmission values individually adjustable to the requirements.
In comparison to the product variant OKALUX, OKALUX+ achieves an optimized Ug-value even in narrow pane build-ups thanks to a functional layer in combination with a gas-filled cavity.

Benefit

• High Functionality
• Optimal, even illumination of the room, without hard shadows
• Effective sun and glare protection
• High light transmission, light entry can be adjusted individually
• High colour rendering
• Good heat and sound insulation
• Protection from UV rays
• Bird-friendly solution
• Fire protection according to requirements
• Sustainability
• Daylight entry reduces amount of artificial light required
• Reduction of cooling loads in summer
• Fully recyclable
• Long-Lasting, maintenance-free and easy to clean
• Attractive Aesthetics
• Attractive appearance
• Vivid surface with depth effect
• Capillary inserts can be printed with colour and décor
• User Comfort
• Comfortable daylight atmosphere
• Effective privacy protection
• Reduced amount of solar input into the building

Build-up + function
Available for vertical and horizontal glazing. Capillary slab in the cavity for even daylight distribution. Functional layer and gas-filled cavity (Air/Argon/Krypton) for optimized insulation.

Technical data
Maximum dimensions: 1,230 mm x 4,000 mm, larger sizes available upon request
Maximally dimensioned glazing may necessitate blunt joints or joint profiles
All technical values, such as light transmission, TSET and Ug-values can be varied by using other constructions and glass types. The Ug-value is depending on the functional coating on surface #2 and the gas filling in the cavity between panes (Air/Argon/Krypton).

Performance Table
OKALUX+
Total Thickness: from 26 mm
Ug-value [W/(m²K)]: Krypton 0.9 | Argon 1.3 | Air 1.5
TSET (SHGC % direct): 14 - 34
Light Transmission (% direct): 19 - 39

Caractéristiques / spécifications techniques

• Product type: Light-diffusing double-glazing insulating glass
• Optimized Ug-value for energy efficiency
• Capillary slab for even daylight distribution
• Sun and glare protection
• High light transmission and color rendering
• Good heat and sound insulation
• UV protection
• Bird-friendly and fire protection options
• Fully recyclable, maintenance-free, easy to clean
• Maximum dimensions: 1,230 mm x 4,000 mm (larger on request)
• Ug-value (Krypton): 0.9 W/(m²K)
• Ug-value (Argon): 1.3 W/(m²K)
• Ug-value (Air): 1.5 W/(m²K)
• TSET (SHGC % direct): 14 - 34
• Light Transmission (% direct): 19 - 39
