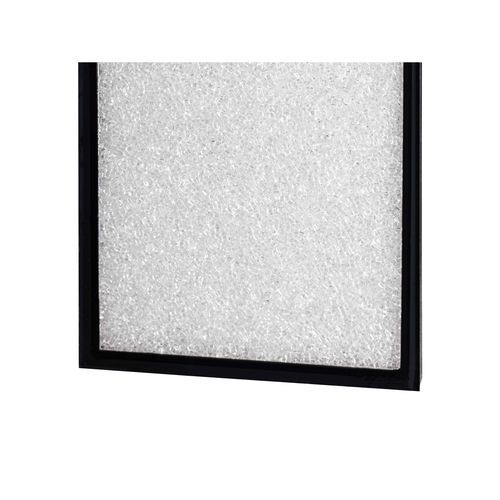

Insulating glass panel O.R

acousticdouble-glazedtriple-glazed

Product Details
The Glossy Sheen Insulating Glass

Overview
With its sparkling appearance, OKALUX R gives the façade a glossy sheen and at the same time, the translucent insert makes daylight usable.

Benefit

• Uniform light transmittance into the room, irrespective of irradiation conditions
• Light transmission and total solar energy transmittance as required
• Good colour rendering index
• Good heat insulation
• UV protection as required
• Sound insulation as required
• Vision protection and glare protection
• Attractive appearance in daylight and in artificial light
• Sustainability by the interlayer, made from 100% recycled plastic
• Good recyclability
• Visibility for birds

Build-up + Function
What makes OKALUX R so special is the cavity between the panes, types and thickness of glass according to structural requirement. For constructional reasons, it is recommended to use ESG-H as an external pane and VSG made of TVG as an inner pane. Minor fluctuations in the density of the OKALUX R may be recognisable.

Technical Data

• Dimensions min.: 200 mm x 300 mm
• Dimensions max.: 2,000 mm x 2,000 mm
• Area max.: 2 m²
• Special dimensions upon request. Model units with angles of > 30° are possible.

Performance Table
OKALUX R
Total Thickness
U_g-value [W/(m²K)]
TSET
Light Transmission

Double Glazing
mm
Krypton
Argon
Air
SHGC (%) direct
(%) direct
from 26
-
-
3.0
28 - 34
18-36

Triple Glazing
mm
Krypton
Argon
Air
SHGC (%) direct
(%) direct
from 42
1.0 - 1.1
1.2 - 1.3
1.5 - 1.6
10-23
17-33

Caractéristiques / Spécifications techniques

• Product type: Insulating glass for façades
• Appearance: Glossy sheen, translucent insert
• Minimum dimensions: 200 mm x 300 mm
• Maximum dimensions: 2,000 mm x 2,000 mm
• Maximum area: 2 m²
• Special dimensions: On request, angles > 30° possible
• Recommended external pane: ESG-H
• Recommended inner pane: VSG made of TVG
• Light transmission: 18-36% (double), 17-33% (triple)
• SHGC: 28-34% (double), 10-23% (triple)
• U_g-value: 3.0 (double), 1.0-1.6 (triple)
• Interlayer: 100% recycled plastic
