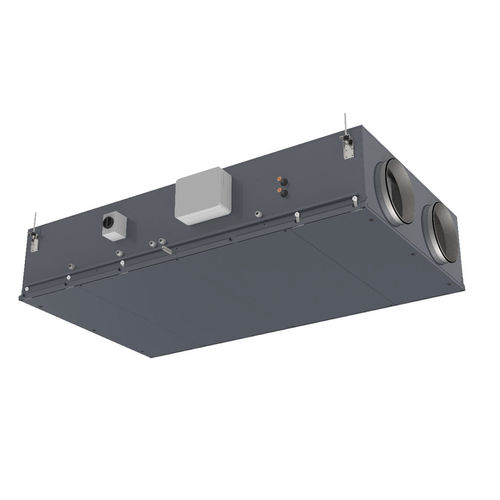

Centralized ventilation unit GLOBAL LPdual-flowresidentialfor homes

centralized ventilation unit
centralized ventilation unit
centralized ventilation unit
centralized ventilation unit
Add to favorites
Compare this product
indicative price

Characteristics

Type
centralized, dual-flow
Sector
residential
Applications
for homes
Air flow

Min.: 100 m³/h (3,531.5 ft³/h)

Max.: 3,720 m³/h (131,370.6 ft³/h)

Description

GLOBAL LP The LP is a range of ventilation units equipped with a plate heat exchanger, stainless steel condensate tray, bag filters, a 100% modulating bypass and plugfans with EC motor (TAC series). Suited for airflows up to ~3.6000 m³/h. Both fans are located at the cold air side of the heat exchanger, thus drastically reducing the noise levels emitted to the building. Integrated pre- and post heating coils are available as an option. The “Low Profile” design makes them ideal for false ceiling applications, which means substantial savings in terms of the use of the available surface area (€/m²). It is delivered ready to use, with a remote control or a MODBUS/KNX/BACnet communication to integrate the unit into a BMS. Just connect it to the power supply (outside the unit and to the remote control or the MODBUS/KNX/BACnet communication to activate the unit, and it’s ready to run. Main advantages: Plate heat exchanger High efficiency, Eurovent certified, plate heat exchangers. They are compliant with the DIN1946 tightness standard and are Eurovent approved according to the EN 308 standard. Ultra low noise With both fans located at the cold air side of the plate heat exchanger, the radiated noise levels towards the building are drastically reduced. Integrated Heating coils Pre-heating (electrical) and Post heating (electrical or water) coils can be optionally integrated inside of the unit. Thus, rendering the unit with its coils really “plug-and-play”. Bag filters All of the units sizes “06” and up, are equipped with EN16890 and EN779 classified bag filters.
