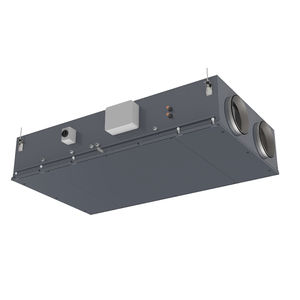

Commercial air handling unit LP OUT

Low-Profile outdoor units for airflows up to 1.800 m³/h or 500 l/s. Low profile air handling unit with counterflow heat exchanger, for air flows up to 0.5 m³/s. Designed for installation outdoors, on flat roofs, this unit is appropriate for renovation projects. GLOBAL LP OUT : The LP OUT is a range of ventilation units equipped with a plate heat exchanger, tray, bag filters, a 100% modulating bypass and plugfans with EC motor (TAC series). Suited for airflows up to 1.800 m³/h. Both fans are located at the cold air side of the heat exchanger, thus drastically reducing the noise levels emitted to the building. Integrated pre- and post heating coils are available as options. A special support structure has been developed to isolate the unit of the snow or the water and to facilitate the installation of elbow ducts. This option is available for each model. Outdoor installation Extra elevation feet Temperature efficiency: up to 82%. Energy-efficient and quiet fans Composite or aluminum fan blades Premium controller with touchscreen
