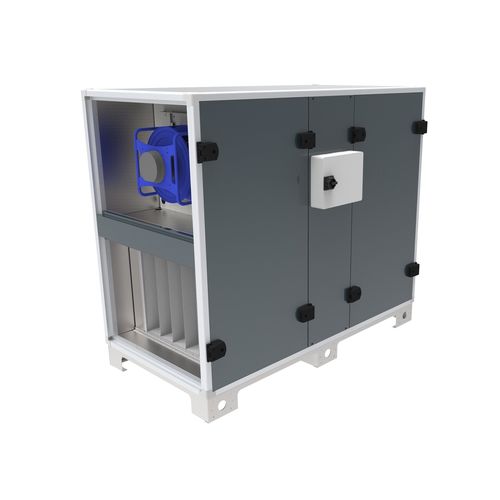

Dual-flow ventilation unit GLOBAL RXresidentialfor homes

dual-flow ventilation unit
dual-flow ventilation unit
Add to favorites
Compare this product
indicative price

Characteristics

Type
dual-flow
Sector
residential
Applications
for homes
Air flow

Min.: 1,200 m³/h (42,377.6 ft³/h)

Max.: 7,200 m³/h (254,265.6 ft³/h)

Description

The GLOBAL RX air handling unit range is a complete new series of efficient and robust units, developed for installers valuing simplicity, contractors that need to keep time and budget and end-users who want the right indoor climate at the right cost. The GLOBAL range suits small to medium size projects such as retail shops, restaurants, offices, schools, hotels, residential buildings, fitness centers, day-care centers, gyms, theaters and public buildings. Integrated post-heating coil Integrated TAC5 controls Touchscreen HMI: TACtouch Optional G4 prefilter High or Premium efficiency heat exchanger Temperature efficiency, heat recovery up to 85% Air flows up to 7200 m³/h or 2000 l/s Cooling energy recovery Equipped with composite or aluminium fans Highly efficient heat exchangers High efficiency, Eurovent certified, rotary heat exchangers. They facilitate supply temperatures and permit or allow transfer of humidity between the two airflows. The exchangers are in “salt-air resistant” aluminium and are suitable for temperatures up to 80°C. They are compliant with the DIN1946 tightness standard and are Eurovent approved according to the EN 308 standard. Rotary heat exchanger (RX) The rotary heat exchanger consists of a rotating wheel with a multitude of small air ducts made of aluminium. The warmer extract air heats the ducts and the heat is transferred to the colder supply air. Temperature efficiency is as high as 80 %. A certain amount of moisture, removed with the extract air, is recovered to the supply air. This can be beneficial in the winter when the outdoor air is usually dry and results in problems for people and interior fittings and electronics.
