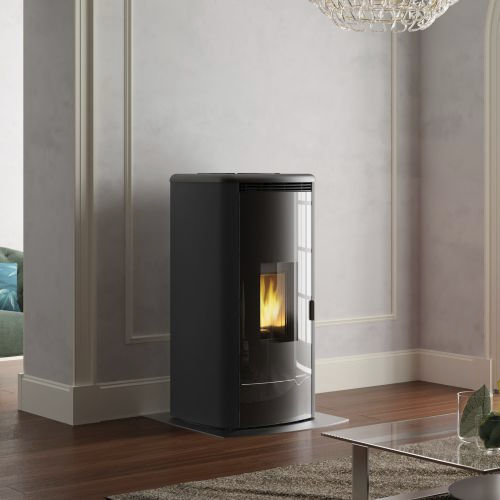

Pellet boiler stove Maida Idro 18T

10 kW...20 kWnot applicablefree-standing

To find out more about the technology behind Ecofire water/air-heating pellet stoves please go to the Heating Systems section. More in-depth info • hydronic pellet stove with fan option • two doors, a design one in curved glass and a technical one provided with Balanced door system • Balanced Door with self-balancing system • different levels of ventilation or complete exclusion • integrated hydronic unit composed of a circulation pump, a safety valve, a closed expansion tank and a manometer • integrated anti-condensation valve • digital, touch screen control panel • operating hours can be programmed on a daily and weekly basis • integrated interface with external thermostat or for connection to the storage tank • designed for our Connection Box • firebox with 8 flue gas tubes • burn pot in cast iron • Combustion Dynamic Control preserves the fuel and combustion air balance, ensuring utmost heat efficiency in all operating conditions • large ash pan • Quick Start system (reduces ignition time) • Star Valve pellet-feed system • provided with turbulators inside the heat exchanger tubes • combustion air ducted from outdoors Technical details Pellet burning Nominal heat output 19.3 kW Water heat output 14.7 kW Efficiency 90.02 % Maximum burn time 19 h Fuel hopper capacity 23 kg Hourly fuel consumption 1.21 - 4.33 kg/h Flue gas outlet ø 10 cm
