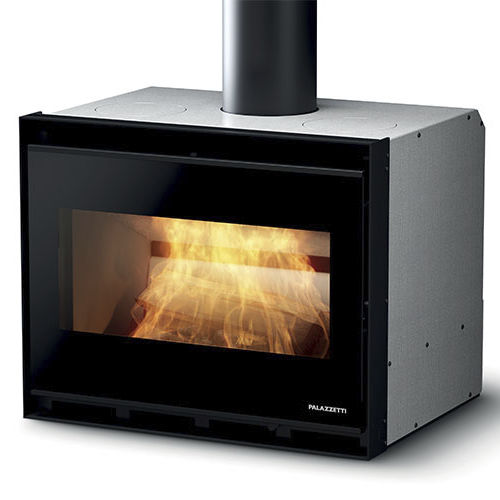

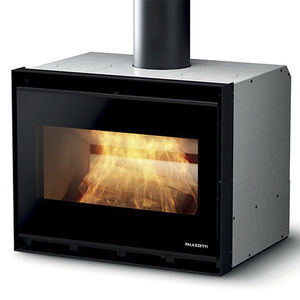

Closed wood hearth GTM80

1-sidedcast iron

A top-performing, wood-burning, fireplace insert. The moderate size of this firebox makes it ideal to renew old open fireplaces as well as to make new ones. The inside is in Thermofix with a cast iron base and a pull-out ash pan. Both the air required for the glass self-cleaning system and the combustion air can be controlled independently. Optional kits offer the possibility of front hot air delivery or of ducting the hot air to other rooms. More in-depth info • natural convection insert • inside is in Thermofix® with a cast iron base • it is supplied as standard with two 50 cm flues • removable door handle • optional kits offer the possibility of front hot air delivery or of ducting the hot air to other rooms. • removable ash pan • for optimal efficiency, an automatic baffle increases the draught when the door is open and reduces it when it is closed • primary air regulation and glass air wash • the combustion air can be taken directly from outdoors Technical details Wood burning Heat input 14.3 kW Nominal heat output 12.4 kW Efficiency 86.9 % Flue gas outlet ø 18 cm
