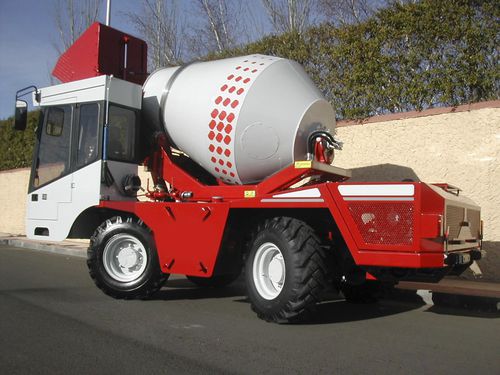

Self loader mixer with a maximum capacity of 2.5 m3 kneading. Monoblock incorporates a frame, a main chassis where differential shafts, reducing translational and diesel, plus sobrechasis wherein the hype, reducing rotation and rotation motor are mounted is mounted.
DEUTZ diesel engine, model TCD 2012 138 hp at 2400 rpm TIER III compliant (COM III), 4-cylinder turbocharged and has liquid cooling.
It has gradually reducing speed for forward and reverse drive 4-wheel, open-cockpit, two directional axes and rotation of 270º Cuba for download at any point around the machine.
Concrete output: 2,5 m3
Engine: DEUTZ 2012
Weight (with empty drum): 6.500 Kgs.
Measurements:6.990 mm x 2.470 mm x 3.180 mm
Cycle: 7 - 10 min
Drum turn: 270º
Height offloading: 1.800mm / 2.100 mm
