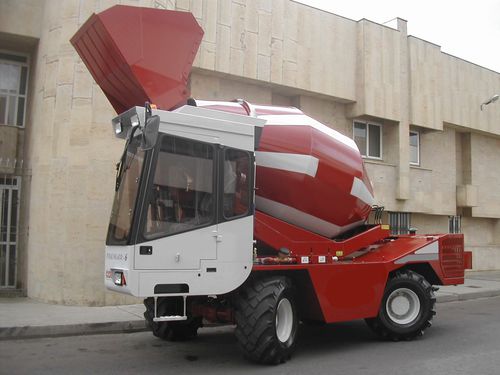

Diesel self-loading concrete mixer PREMIER - 6

for constructionloadingTier 3

The biggest Self-loading concrete mixers of the range, with maximum of 5 m3 output. It’s produced on a monoblock frame, composed of a main chassis where the differential axles, reducer and diesel engine are mounted, as well as a double-chassis where is mounted the drum, spin reducer and motor. It has gear reducer for a progressive speed in forward and reverse, 4-wheel drive, front cabin closed and glazed, two-directional axis, and drum rotation of 270 ° for pouring at any point around the machine. Diesel engine complies with TIER III Standard (COM III) Concrete output: 5 m3 Engine: DEUTZ 2012 Engine power: 138 CV Cabin: ROP - FOPS Weight (with empty drum): 10.500 Kgs. Measurements: 8.330mm x 2.550mm x 3.480mm Drum turn: 270º Axles weigth capacity: 10.500 Kgs. Cycle: 7 - 10 min Height offloading: 2.050 mm / 2.400 mm
