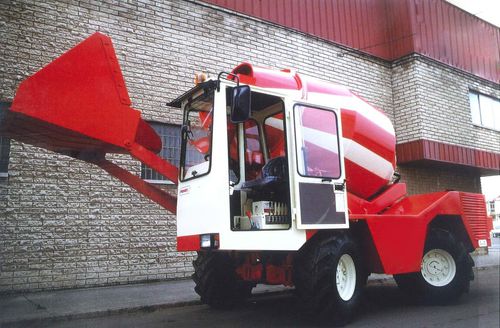

Self-loading concrete mixers with maximum of 4 m3 output. It’s produced on a monoblock frame, composed of a main chassis where the differential axles, reducer and diesel engine are mounted, as well as a double-chassis where is mounted the drum, spin reducer and motor.
It has gear reducer for a progressive speed in forward and reverse, 4-wheel drive, front cabin closed and glazed, two-directional axis, and drum rotation of 270 ° for pouring at any point around the machine. Diesel engine complies with TIER III Standard (COM III).
Engine: DEUTZ TCD 2012
Engine power: 138 HP
Cabin: ROP - FOPS
Weight (with empty drum): 8.500 Kgs.
Measurements: 7.670mm x 2.500mm x 3.380mm
Drum turn: 270º
Axles weigth capacity: 10.000 Kgs.
Cycle: 7 - 10 min
Height offloading: 2.000 mm / 2.350 mm
