Frame formwork GRIPreusablemetalbirch
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- frame, reusable
- Material
- metal, plywood, birch
- Applications
- column
- Other characteristics
- adjustable
Description

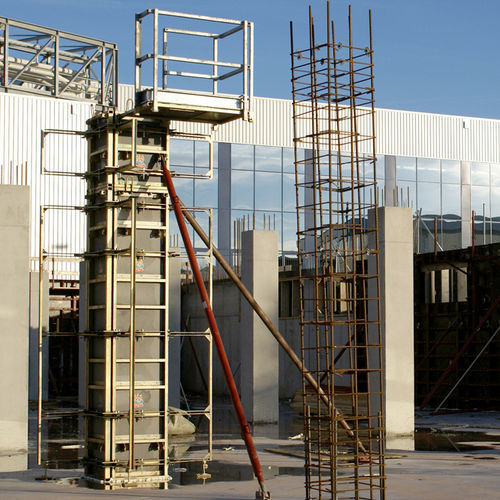

Adjustable column formwork
• Setting and stripping of formwork requires only the the fastening and then unfastening of ties at one corner
• Relocation via a single crane lift (folding mechanism)
• Easy installation of concreting platform and push-pull props
• Low transport volume due to foldable mechanism
Adjustable column formwork with excellent forming times for highest quality fair-faced concrete formwork.
Panel heights - 340/300/150/90cm
Adjustable range - 20-60cm, in 5cm steps
Plywood - 21mm plastic covered birch plywood
Max. concrete pressure - 80 kN/m² according DIN 18218
