Modular formwork circularovalsteel
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- modular, circular, oval
- Material
- steel
- Applications
- column
- Other characteristics
- adjustable
Description
• Leakage free panels joints due to overlapping formwork lining
• Oval columns and rounded stopends by be using the Modular connection panel
• Complete with work platform for safe concreting
• Many deployments, no disposal costs
• No limits to concreting speed at small diameters

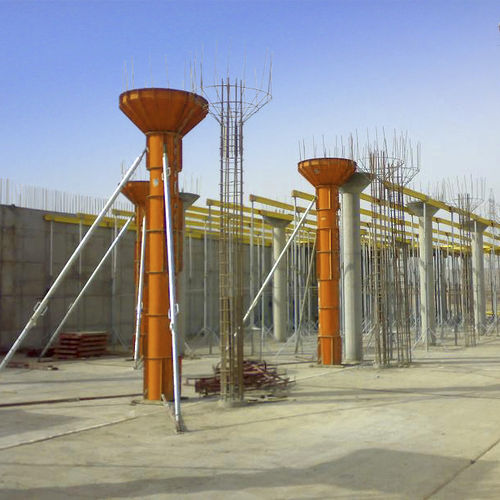

Steel formwork for round and oval shaped columns.
Panel heights - 300/275/150/125/75 cm
Diameter - 100/90/80/70/60/50/45/40/35/30/25 cm
Plywood - 3 mm steel sheet
Max. concrete pressure - 85 kN/m² according DIN 18218 (ø 100 cm)
- 335 kN/m² according DIN 18218 (ø 25 cm)
VIDEO
