Modular formwork

framereusablerectangular

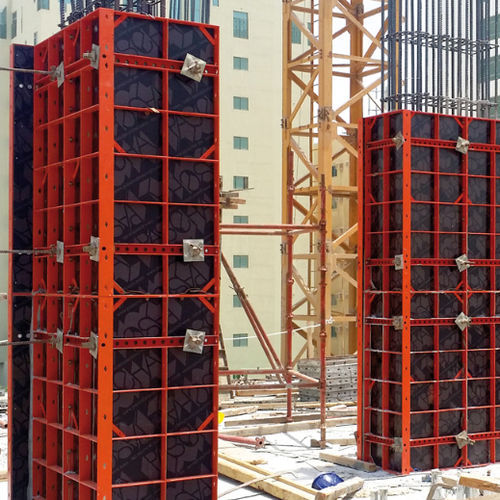

Modular column formwork adjustable • With four elements each square and rectangular column cross-sections can be formed in the adjustment range of 20 cm to 50 cm in increments of 5 cm. • Mounting options for accessories such as props, plattform brackets or crane lifting clamps are available in the elements. • With increased demands on the concrete surface (edges ) at the panel joints, a glazing tape or chamfer strip can be mounted. The adjustable modular column formwork by PASCHAL is a steel frame formwork whose elements are assembled according to the so-called windmill principle. Panel width - 60 cm Panel heights - 150/125/100 cm Frame depth - 7,5 cm Plywood - 15 mm, phenolic resin coated plywood Max. concrete pressure - 60 kN/m² according to DIN 18218
