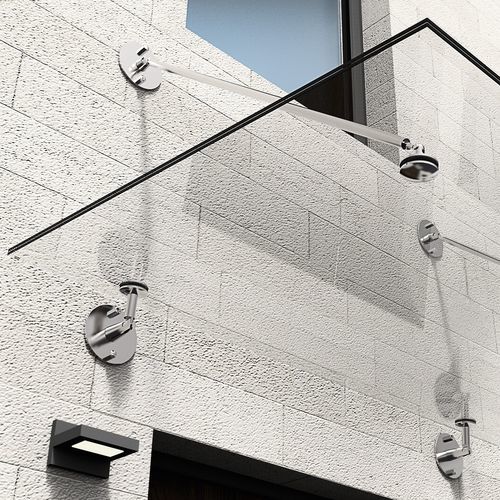

Door canopy Z-01

for windowmetalstainless steel

Check the uniform code on:– components (see delivery note/instruction leaflet)– the glazing (see delivery note and stamp on the glass) For instructions and recommendations for cleaning and handling of stainless steel surfaces click under: www.pauli.de First, you should check the sub-construction and, if necessary, do extraction tests (axis) to choose certain approved fixations, for example using shims. Mount the wall mounts First mark the drilling points (see attached diagram) for the upper and lower wall mounts and drill the appropriate holes in the wall. If you use our special wall plugs (item no. 1980) for perforated or checker bricks, the drilled holes have to be blown out clean in order to ensure they bond securely as possible. Please follow the manufacturer‘s instructions. Make sure you adjust the threaded rods horizontally and vertically as soon as you insert them. The best way of doing this is with the aid of the original wall mounts. After the allotted curing time you can attach the wall mounts. Once again, make sure that they are aligned properly. Mount the point fixtures (1926VA, 1927VA) to the glass. These have to be assembled in the same order as shown in the diagram. A EPDM rubber washer should always be fitted between glass and metal. Also make absolutely certain that the fork heads are aligned properly (90° to the wall) and the tightening torque is 16 N*m.
