Safety glass panel PYROCLEAR®

insulatingfire protectionfire-rated

Overview
Pilkington Pyroclear® is a clear monolithic fire-resistant and safety glass engineered to deliver basic integrity performance in internal and external architectural glazing. Its specially developed edge technology and protection tape enhance edge strength and provide a visual indicator of any edge damage, ensuring consistent behaviour under thermal stress during a fire.

Features & Benefits

• Provides basic integrity performance for single-skin fire-resistant glazing.
• Permits framing edge cover from 10 mm to 15 mm, compatible with common steel and aluminium systems.
• Special edge strength and design reduce the risk of failure under thermal stress.
• Edge protection tape indicates damage to the glass edge for easier inspection.
• Available monolithic with up to 60 minutes integrity performance.
• Available in insulating glass units with up to 30 minutes integrity performance.
• High optical clarity suitable for architectural applications.
• Can be specified in large pane sizes for metal systems (example: 1.8 m x 3.5 m — E30).

Applications
Pilkington Pyroclear® is certified for use in single and double glazed units with steel and aluminium framing and may be installed in doors, screens, partitions, skylights, roof glazing, façades, atrium side glazing and smoke barriers in accordance with national regulations.

• Doors, screens and interior partitions

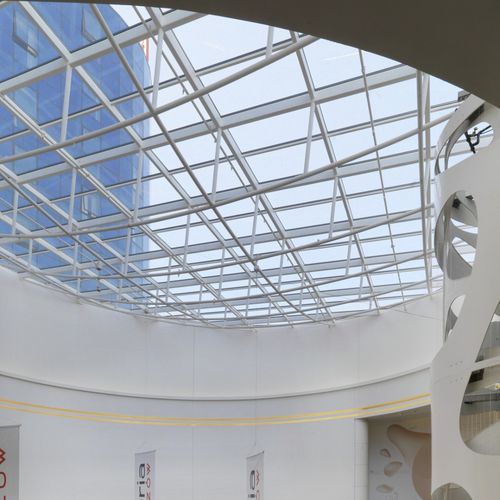

• Skylights and sloped roof glazing
• External façades where flame breakout must be limited
• Atrium side glazing
• Smoke barriers and screens
• Large pane solutions in metal systems

Product Combinations
Pilkington Pyroclear® can be combined with solar control coatings, thermal insulation solutions and self-cleaning treatments to enhance energy performance, occupant comfort and ease of maintenance while maintaining fire integrity.

Technical specifications

• Glass type: Clear monolithic fire-resistant and safety glass (single-skin soda lime silicate).
• Monolithic integrity performance: up to 60 minutes.
• Insulating glass units integrity performance: up to 30 minutes.
• Framing edge cover: 10 mm to 15 mm permitted.
• Edge technology: special edge strength and edge protection tape to indicate damage.
• Large pane capability: example 1.8 m x 3.5 m (E30) in metal systems.
• Suitable installations: doors, screens, partitions, skylights, roof glazing, external façades, atrium glazing, smoke barriers and screens.
• Optical quality: high clarity.
