Suspension system FLYDECK
Add to favorites
Compare this product
Description
Characteristics
Advantages
Applications
Technical Data
Technical specifications
- FLYDECK is a patented and certified suspended soffit plane designed for temporary suspended structures to simplify and speed up assembly while ensuring safe working conditions.

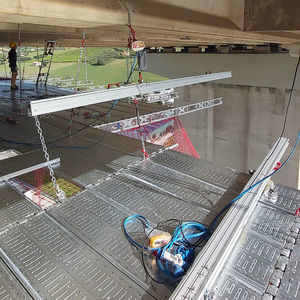

- Provides a perfectly horizontal working plane for operations on sites requiring a suspended solution. When combined with the FLYRAIL beam for mounting, the deck allows safe, unobstructed work access.
- Enables continuous encirclement of pillars and pier-caps and continuation across spans.
- No inherent limitations in width, length or load capacity due to the modular design compatible with beams and scaffolding decks of any make or size.
Advantages
- Significant reduction of installation times thanks to the FLYRAIL beam, high maneuverability of elements and rapid connections.
- Ability to set up the FLYDECK plane from any access point allows continuation in any direction without interrupting road or rail traffic.
- Access to the provisional structure from a pile or embankment without interrupting traffic flow.
- Safe anchorage phases for workers during assembly.
- Compatible with standard railings and various scaffolding systems to complete the deck as required.
- Reduced worker fatigue because the FLYRAIL beam supports the weight of cantilever beams.
- 25 cm aluminium truss with X‑reinforcement for high maneuverability and strong load-bearing capacity.
- Beam connections via spigot and special spring pins for faster assembly compared with screw nuts.

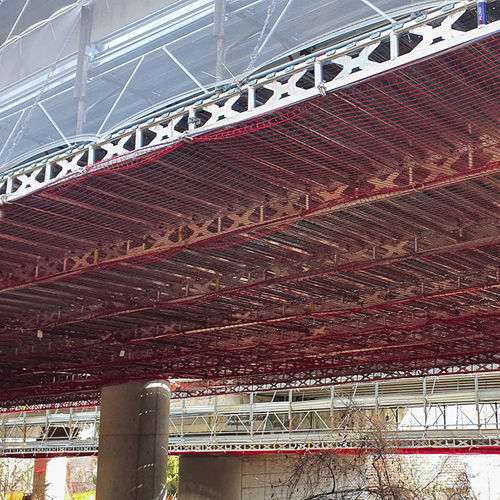

- Allows installation of safety nets beneath the work surface, eliminating the need for sub-bridges and reducing setup time and overall structure weight.
- Lower transport and handling costs due to aluminium light weight; storage volume reduced by half thanks to 25 cm beams.
- The FLYRAIL system is also compatible with other truss types.
Applications
- Residential construction
- Industrial construction
- Bridge maintenance
- Renovation & restoration
- Events and temporary works
Technical Data
- Load capacity: up to 150 kg/m² with tie‑rods every 6 m²; up to 300 kg/m² with tie‑rods every 4 m².
Technical specifications
- Patented certified soffit plane for temporary suspended structures.
- Modular system compatible with beams and scaffolding decks of any make, model, shape and size.
- Supports continuous encirclement of pillars and pier‑caps across spans.
- FLYRAIL beam used to mount the FLYDECK table, reducing worker fatigue by supporting cantilever beam weight.
- 25 cm aluminium truss with X‑reinforcement for maneuverability and enhanced load-bearing capacity.
- Beam connections via spigot and special spring pins for fast assembly.
- Enables laying of safety nets for the work surface, eliminating the need for sub-bridges.
- Transport and handling advantages due to aluminium light weight; storage space reduced by half because of 25 cm beams.
- Load capacity range: 150 kg/m² (tie‑rods every 6 m²) up to 300 kg/m² (tie‑rods every 4 m²).
