Suspension system FLY 105

Overview

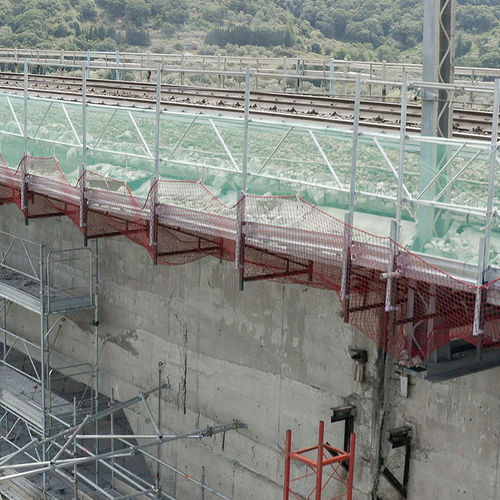

Fly 105 is a cantilever bracket system for maintenance work on curbs, edge beams of bridges and viaducts, roofs and building cornices. The design enables progressive, safe installation of a mobile walkway from a secure position, reducing dependency on external support equipment after initial setup.

Characteristics

• The Fly 105 cantilever bracket is engineered for maintenance on edge beams of bridges, viaducts, roofs and cornices.
• Innovative progressive assembly allows operators to install the walkway continuously and safely, improving on-site productivity.
• The system uses a Z-profile bracket that accommodates a mobile walkway and enables progressive fixing of wall brackets from a protected position.
• Designed to minimise the use of external support equipment (required only during initial installation, e.g. aerial platform or scaffolding).
• An aluminium version is available with a dual profile: compatible with planks using tube Ø connections and with U-profile planks.

Advantages

• Continuous, uninterrupted installation process
• Operator safety ensured by progressive assembly method
• Minimal requirement for external support equipment after setup
• Suitable for confined or hard-to-access spaces
• Modular and reusable components
• Available in galvanised steel or aluminium

Technical Data

• Load capacity: 150 kg/m²
• Bracket length: 105 cm; available in galvanised steel or aluminium
• Suspension plates: 25 cm and 55 cm with anti-slip safety mechanism
• Walkway: aluminium, 60 × 400 cm
• Dual profile (aluminium version only): compatible with tube Ø and U-profile planks

Specifications / Technical specifications

• Model name: Fly 105
• Primary materials: galvanised steel or aluminium
• Bracket length: 105 cm
• Rated load capacity: 150 kg/m²
• Suspension plates available: 25 cm and 55 cm with anti-slip mechanism
• Walkway dimensions (aluminium): 60 × 400 cm
• Aluminium version: dual profile for tube Ø and U-profile planks
• Design features: Z-profile bracket, progressive assembly system for continuous installation, minimizes external support equipment after initial installation
