Suspension system FLYRAIL

Overview

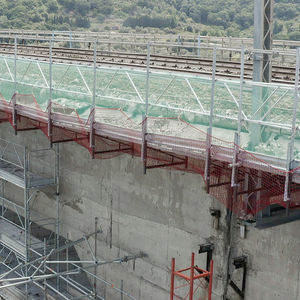

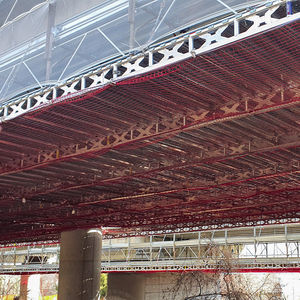

The FLYRAIL guide beam, used in combination with the FLYDECK system, enables the continuation of the suspended working surface beyond piles and piers without interrupting the roadway with by‑bridges or negative platforms. Patent pending. CE marked.

Advantages

• Reduces execution time by 30–50%
• Improves safety during erection and dismantling
• Enables lateral suspended floors at piers/piles so the provisional structure can continue into the next span
• Reduces worker fatigue through easier handling and movement
• Guide compatible with any beam type

Technical data

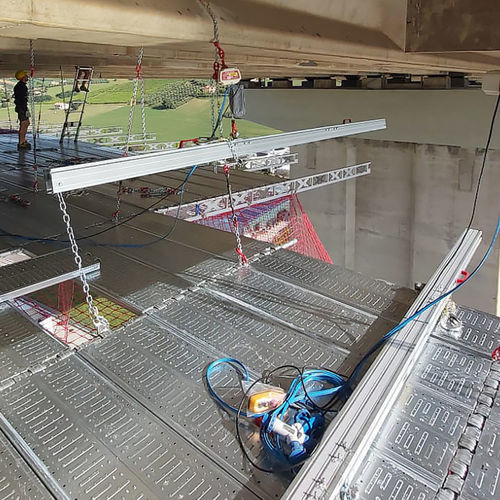

• System composed of one or two guides
• Guide length options: 5 m; or 2 × 2.5 m; or 3 × 1.67 m
• 220 W single‑phase electric hoist with control panel
• Two handles
• 10 m hoist chain
• 5 m tear‑proof pushbutton panel cable
• Hoist suspension chain with safety device
• Rear fixing chain to top with sicurblok
• Sliding trolley with sicurblok to move and support the beams

Applications

• Bridge construction
• Bridge maintenance

Technical specifications

• Patent pending; CE marked
• Designed to continue the working surface beyond piles and piers without interrupting the roadway
• Designed for use with the FLYDECK system
• Compatible with any beam type
• Available guide configurations: 5 m; 2 × 2.5 m; 3 × 1.67 m
• System can consist of one or two guides
• 220 W single‑phase electric hoist with control panel
• 10 m hoist chain and suspension chain with safety device
• 5 m tear‑proof control cable
• Rear fixing chain with sicurblok
• Sliding trolley with sicurblok for beam movement and support
• Two handles
• Execution speed improvement: 30–50% time saving
• High safety during erection and dismantling
