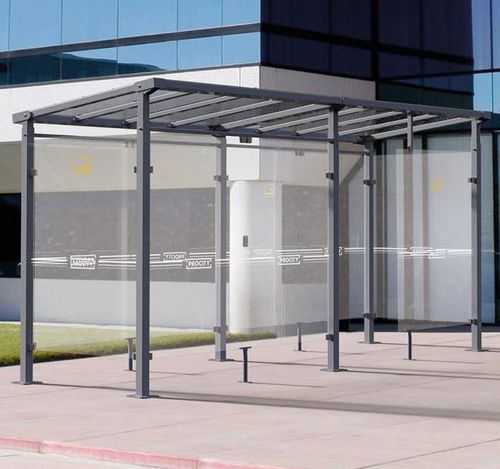

A stylish smoking shelter that's even easier to spot when you add optional signage and wind protectors.
Two lengths: 2500 mm or 5000 mm (entrance width 1000 mm).
Depth: 1560 mm.
Height: 2600 mm.
Square posts: 80 x 80 mm steel tubes on base plates.
Roof frame: Two 60 x 60 mm steel-tube crossbars.
Roof: 10 mm anti-UV-treated translucent cellular polycarbonate panels.
Side and Rear panels: 8 mm Securit® safety glass with safety markings.
Panel attachment: Pinch-grip system for easy replacement in case of vandalism.
Finish: Galvanised and painted in our standard RAL colours.
Installation: On base plates.
Optional: Addittional front and rear wind protection panels available.
