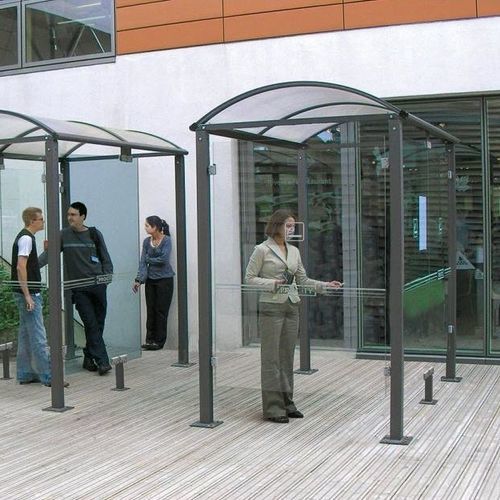

A smoking shelter that creates a spacious area where smokers are protected from the elements.
Two Lengths: 2500 mm or 5000 mm (entrance width 1000 mm).
Depth: 1560 mm.
Height: 2680 mm.
Square posts: 80 x 80 mm steel tubes on base plates.
Roof frame; Two 40 x 60 mm aluminium-tube crossbars and two aluminium profile rain gutters. Dome supports made from curved aluminium profiles.
Roof: Anti-UV-treated transculent cellular polycarbonate dome. 6 mm thick.
Front, side and rear panels: 8 mm safety glass with safety markings.
Panel attachment: Pinch-grip system for easy replacement in case of vandalism.
Finish: Galvanised and painted in our standard RAL colours.
UK compliant smoking version: As above without the wrap around front panel to ensure 50% of vertical surface is open.
Options: Ashtray bins available.
