Anodized aluminum edge trim Sanitec SB10

aluminumfor wet roomsfor industrial kitchen

Product description

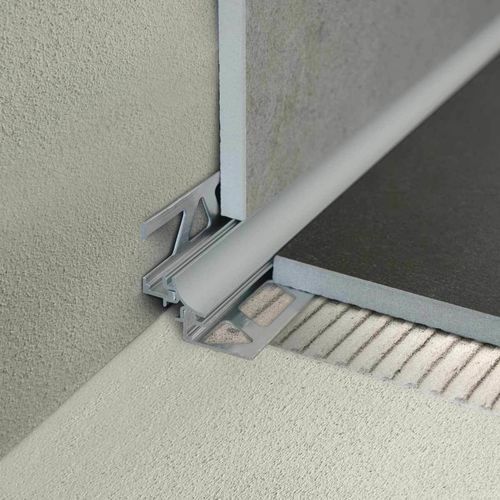

SANITEC SB10 is a hygienic anodised aluminium cove-shaped profile for internal tiled corners, designed for pre-installation (applied before laying floor and wall coverings). It is intended for the food industry, public spaces and hygiene-sensitive environments (hospitals, kitchens). For tile thicknesses up to 4.5 mm the profile is used alone; for greater thicknesses combine with Trimtec TR and Kerajolly KJ. The profile's curvature (R 4.5 mm) and surface finish facilitate cleaning and support compliance with hygiene requirements.

Materials and finishes available
Aluminium / Anodized
R (mm) | Art. | Color
4.5 | SB 10 AS | Silver

Aluminium / Bright Polished
R (mm) | Art. | Color
4.5 | SB 10 ASB | Chrome

Accessories

• Sanitec SBT10 — triaxial connector for SANITEC SB10 to converge three profiles at a single point; to be combined with SB10.
• Sanitec SBI10 — internal corner connector for joining two SB10 profiles to create an internal corner; to be combined with SB10.
• Sanitec SBE10 — external rounded corner connector for SB10 profiles; available also in corner version SBES10.
• Sanitec SBES10 — external corner (angle) connector variant for aesthetic continuity; to be combined with SB10.
• Sanitec SBF10 — end caps for finishing SB10 profile installations.

Downloads

• Datasheet: https://www.profilitec.com/uploads/docs/EN_Sanitec%20SB10_Datasheet.pdf

Characteristics / technical specifications

• Model: SANITEC SB10
• Material: Aluminium (Anodized or Bright Polished)
• Function: hygienic cove profile for internal corners between tiled surfaces; pre-installation (applied before laying tiles)
• Recommended tile thickness: up to 4.5 mm used alone; for greater thickness combine with Trimtec TR and Kerajolly KJ
• Radius (R): 4.5 mm
• Article codes: SB 10 AS (Anodized Silver), SB 10 ASB (Bright Polished / Chrome)
• Profile heights: customisable from 6 to 12.5 mm using Trimtec TR and Kerajolly KJ
• Resistance: corrosion-resistant and mechanically durable; suitable for food industry, hospitals and public environments subject to frequent cleaning
• Compatibility: compatible with Trimtec TR and Kerajolly KJ; accessories available for internal/external corners, triaxial connections and end caps
• Technical drawings: section images and technical files available on the product page
