Resin edge trim INTERJOLLY IJ

stainless steelfor wet roomsfor wall covering

Overview

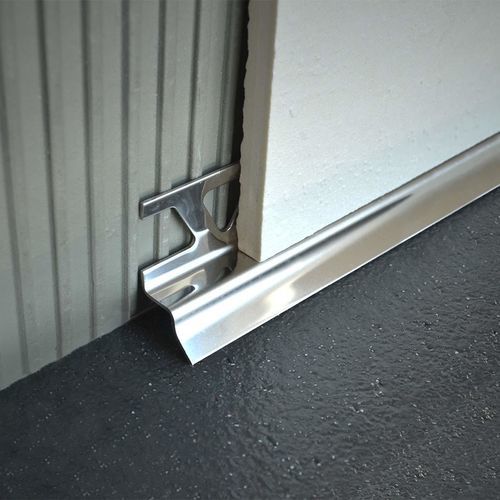

INTERJOLLY IJ profiles optimize wall-to-floor tile transitions while allowing differential movement. The perforated flange installed behind the wall tiling guarantees secure mechanical anchoring. This cove-shaped profile creates a rounded visible surface that is hygienic and easy to clean and can replace silicone peripheral joints around shower stalls and bathtubs.

Materials and main variants

• Stainless Steel 304 (AISI 304) - Polished: good resistance to mechanical impact, high resistance to corrosion from most diluted chemicals and aggressive detergents. Internal (ICI), external (ICE) and three-way (ICT) joint pieces available.
• Synthetic Resin (solid extruded): colour embedded through the body (not only coated), wide colour range, easy to cut for installation, UV and scratch resistant, tolerant to mechanical impact and most domestic cleaning products.

Stainless Steel 304 - Polished (table)
H (mm) — Art.
8 — IJ 80 IL
10 — IJ 100 IL

Synthetic Resin (table)
H (mm) — Art. — Color
7.5 — IJ 75 P11 — Pure White
9.5 — IJ 95 P11 — Pure White
7.5 — IJ 75 P12 — White
9.5 — IJ 95 P12 — White
7.5 — IJ 75 P22 — Pastel Grey
9.5 — IJ 95 P22 — Pastel Grey
7.5 — IJ 75 P31 — Beige Bahama
9.5 — IJ 95 P31 — Beige Bahama

Additional technical notes

• Perforated flange for mechanical anchoring behind tile bedding.
• Cove-shaped profile designed to be hygienic and easier to clean than traditional joints.
• Can replace silicone caulking around shower stalls and bathtubs.
• Stainless steel variant recommended for environments exposed to saline, chlorine or aggressive detergents.
• Synthetic resin variant offers integral colour, lower installation cost (easy cutting) and resistance to UV and scratches.
• Available joint pieces for stainless steel: internal (ICI), external (ICE) and three-way (ICT).

Technical specifications

• Product family: Wall covering profiles — Interjolly IJ.
• Model / commercial denomination: Interjolly IJ.
• Materials: Stainless Steel AISI 304 (DIN 1.4301) — Polished; Solid Extruded Synthetic Resin (various colours).
• Heights available (H): 7.5 mm, 8 mm, 9.5 mm, 10 mm (depending on material/variant).
• Article codes (selected): IJ 80 IL (H=8 mm, SS304), IJ 100 IL (H=10 mm, SS304); IJ 75 P11 / IJ 95 P11 / IJ 75 P12 / IJ 95 P12 / IJ 75 P22 / IJ 95 P22 / IJ 75 P31 / IJ 95 P31 (synthetic resin variants with colours).
• Finishes: Polished (stainless steel); coloured solid body (synthetic resin).
• Function: connecting trim between walls and bath or shower trays; allows differential movement and provides watertight hygienic junction.
