Stainless steel edge trim Sanitec IC25

for floor coveringsfor wet roomsfor baseboard

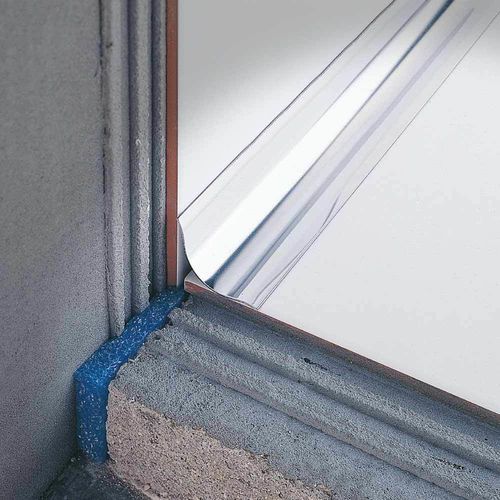

Product description Conceived as hygienic wall-to-wall or wall-to-floor transitions, SANITEC IC cove-shaped profiles comply with hygiene requirements for inspected public spaces such as hospitals, food processing plants, industrial kitchens and public washrooms. Designed for retrofit applications on existing surfaces during building renovations. Slightly rounded external edges ensure sealing of the profile onto the substrate. Use the recommended adhesive for on-site installation. The H 60 mm version also serves as a baseboard.

Materials and finishes available SANITEC IC25-I in AISI 304 stainless steel (DIN 1.4301), polished. AISI 304 stainless steel offers corrosion resistance suitable for food, hospital and chemical sectors. Recommended applications: butchers, public kitchens, laboratories, hospitals and bathrooms. Good mechanical strength.

Sizes / Articles BxH (mm) | Art. 25 x 25 | IC 25 ILN

Accessories

• SANITEC ICI — internal corner in stainless steel, polished finish, for creating precise internal joints when installing the SANITEC IC profile.
• SANITEC ICE — external corner in stainless steel, polished finish, for creating precise external joints when installing the SANITEC IC profile.
• SANITEC ICT — triaxial fitting in stainless steel, polished finish, for three-way junctions when installing the SANITEC IC profile.

Downloads

• SANITEC IC25 - Datasheet (EN): https://www.profilitec.com/uploads/docs/EN_Sanitec%20IC25_Datasheet.pdf

Characteristics / Specifications

• Product family: SANITEC IC Cove trim
• Intended applications: hospitals, food processing plants, industrial kitchens, public washrooms, retrofit in public buildings
• Material: AISI 304 stainless steel (DIN 1.4301)
• Finish: Polished
• Installation: recommended adhesive for on-site installation
• Special functions: slightly rounded edges seal the profile to the substrate; H 60 mm version can act as a baseboard
• Available size example: 25 x 25 mm (Art. IC 25 ILN)
• Compatible accessories: SANITEC ICI (internal corner), SANITEC ICE (external corner), SANITEC ICT (triaxial fitting)
