Characteristics

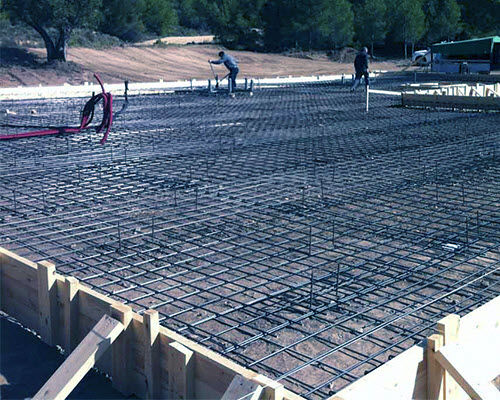

Indicated for the assembly of concrete slabs.
Corrugated steel B 500SD/T, in different thicknesses and mesh frames.
Panel dimensions: 6, 00 m. x 2, 20 m.
Dimensions
Weft (mm) - Ø (mm) - Weight (kg)/m2
150 x 150 - 5 - 1,93
150 x 150 - 6 - 2,79
150 x 150 - 8 - 4,96
150 x 150 - 10 - 7,37
200 x 200 - 5 - 1,40
200 x 200 - 6 - 2,01
200 x 200 - 8 - 3,59
200 x 300 - 5 - 1,14
Technical characteristics
Panel dimensions: 6, 00 m. x 2, 20 m.
Applications
Construction
