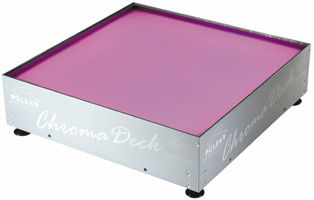

Floor LED panel CHROMADECK
RGB

floor LED panel
floor LED panel
floor LED panel
Add to favorites
Compare this product

Characteristics

Type
floor
Other characteristics
RGB

Description

Jointly developed by Litestructures and Pulsar A hybrid of the industry standard Litedeck staging system and the innovative ChromaPanel Compatible with the standard Litedeck staging system Can be used in either fixed installations or as part of a temporary or touring stage or TV set Rated for a full 125Kg dynamic load LEDs and all components in our fixtures are chosen and driven to exceed a 100,000 hour design life Description: ChromaDeck & CP600 Floor Panel Item Code: CDECK LEDs: 44 x Red, 44 x Green, and 44 x Blue (Total 132 x 5mm LEDs) IP Rating: 65 Voltage: 24 Volts DC Power: 17 Watts max Inputs: 3 x 0-10V Connectors: 1 x WAGO (F) Cables: 5m (16.4") ChromaFlex Included Accessories: 1 x WAGO (M) and 1 x WAGO (F) connectors Product Dimensions: 610 (w) x 610 (h) x 177-210mm (d) (24.0 x 24.0 x 7.0-8.3") Product Weight: 19.5 Kg (42.8 lbs) Pack Dimensions: 640 x 640 x 170mm (25.2 x 25.2 x 6.7") Pack Weight: 22 Kg (48.4 lbs)
