Our ChromaMR16 Heart further increases the flexibility of our ChromaRange, as it allows for the use of MR16 type low cost standard fixtures. This new ChromaMR16 Heart features either 18 discreet RGB LEDs or 12 high power TriColour devices and is supplied with 3 meters of lightweight ChromaFlex cable.
17 different enclosures available to provide an unbelievable level of design flexibility and the original ChromaMR16 Heart is available on its own for specialised OEM applications.
Up to five MR16 Hearts can be used on each 50W ChromaZone output, allowing the use of a massive 60 units from a single ChromaZone12-200!
LEDs and all components in our fixtures are chosen and driven to exceed a 100,000 hour design life.

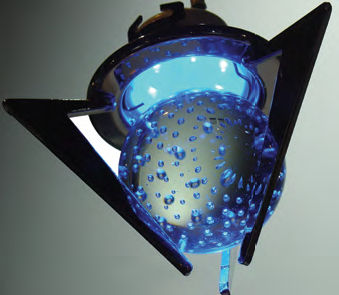

Description: ChromaCrystalColumn MR16 RGB Fixture
Item Code: CMR16CCOL
LEDs: 6 x Red, 6 x Green and 6 x Blue (Total 18 x 5mm LEDs)
Light Output with RGB@100%: 90 lm
IP Rating: 20
Voltage: 24 Volts DC Power: 3.5 Watts Max
Connectors: 1 x WAGO (F)
Cables: 3m (9.8') ChromaFlexLite
Product Dimensions: 82 (dia) x 75 mm (d) (3.2 x 3.0")
Product Weight: 0.5 Kg (1.1 lbs)
Pack Dimensions: 130 (h) x 110 (w) x 100mm (d) (5.1 x 4.3 x 3.9")
Pack Weight: 0.6 Kg (1.3 lbs)
