wall-mounted LED panel / RGB
CHROMAPANEL

{{requestButtons}}

Characteristics

  • Type:

    wall-mounted

  • Other characteristics:

    RGB

Description

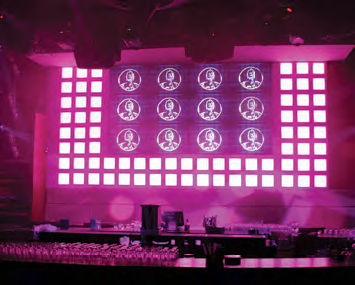

The ChromaPanel is a square colour mixing panel that utilises high-power LEDs to create a vivid panel of changing colour making it ideal for suspended ceilings or decorative wall or set displays

ChromaPanels are available in 600mm and 300mm sizes

LEDs and all components in our fixtures are chosen and driven to exceed a 100,000 hour design life.

Description: ChromaPanel for 600mm grid
Item Code: CP600
LEDs: 44 x Red, 44 x Green and 44 x Blue (Total 132 x 5mm LEDs)
IP Rating: 20
Voltage: 24 Volts DC Power: 17 Watts max
Inputs: 3 x 0-10V
Connectors: 1 x WAGO (F)
Cables: 5m (16.4") ChromaFlex
Included Accessories: 1 x WAGO (M) and 1 x WAGO (F) connectors
Product Dimensions: 590 (w) x 75 (h) x 590 (d) (23.2 x 23.2 x 3.0")
Product Weight: 5.2 Kg (11.4 lbs)
Pack Dimensions: 610 (w) x 110 (h) x 610mm (d) (24.0 x 24.0 x 4.3")
Pack Weight: 7.3 Kg (16.0 lbs)

Description: ChromaPanel for 300mm grid
Item Code: CP300
LEDs: 10 x Red, 10 x Green and 10 x Blue (Total 30 x 5mm LEDs)
IP Rating: 20
Voltage: 24 Volts DC Power: 4.25 Watts max
Inputs: 3 x 0-10V
Connectors: 1 x WAGO (F)
Cables: 5m (16.4") ChromaFlex
Included Accessories: 1 x WAGO (M) and 1 x WAGO (F) connectors
Product Dimensions: 293 (w) x 75 (h) x 293mm (d) (11.5 x 11.5 x 3.0")
Product Weight: 1.7 Kg (3.7 lbs)
Pack Dimensions: 310 (w) x 110 (h) x 310mm (d) (12.2 x 12.2 x 4.3")
Pack Weight: 1.9 Kg (4.2 lbs)
