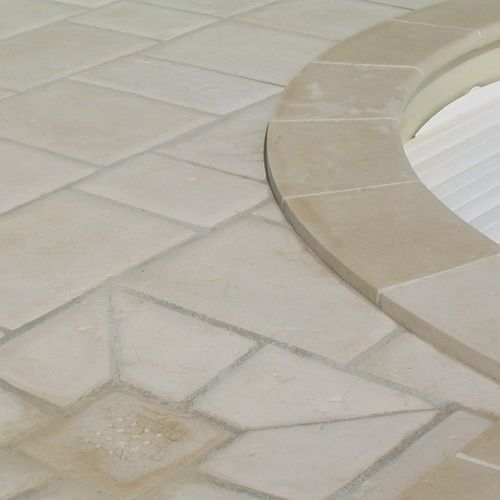

Bush hammered stone paving slab DALLE

outdoorbush hammeredfrost-resistant

DESCRIPTION
PAVING SLAB 49×49
BUSH‑HAMMERED STONE APPEARANCE
Unit of sale (U) = m²
Equivalent: 1 m² = 4 slabs

GEOMETRIC DIMENSIONS (cm)
length: 49
width: 49
thickness: 8
weight (kg/U): 180

PACKAGING
Packaging (U/pallet): 9 (disposable pallet 110×90)

MECHANICAL SPECIFICATIONS
breaking by splitting (MPa): 5.2
water absorption: < 6%
freeze/thaw resistance: 0.758 kg/m²
slip resistance: medium 62

REGULATORY FRAMEWORK
NF – EN – 1339
Fascicle 29 of 30 May 2021
NF – 98 335

INSTALLATION

• Instructions from NF P 98 335 and Fascicle 29 of the CCTG take precedence.
• Installation is carried out between +5°C and +30°C on a sound substrate.
• Masons’ mortars should be prepared or supplied progressively to match the installation pace.
• The bedding mortar is leveled with a straightedge and applied progressively; thickness should be as uniform as possible (~4 cm).
• Slabs must be dampened, especially during hot weather.
• When laying, mix products of different colours/shades coming from different batches.
• Leave joints between slabs. Joints should be filled with mortar no sooner than 24 h and no later than 72 h after laying. Minimum joint width: 5 mm.
• Movement joints must be provided in accordance with normative requirements (10 m linear or 20 m²).

MAINTENANCE

• Original colours are very stable; minimal maintenance is generally sufficient.
• Applying a mineralising treatment will ease cleaning and extend the surface appearance life.
• High‑pressure cleaners or acidic products are not recommended as they may cause irreversible alterations.
• De‑icing salts should be used reasonably, avoiding excessive stagnant residues.

COLOUR CHART
Colour chart available showing shades for the bush‑hammered stone appearance.

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• Product reference: Slab 49×49
• Appearance: bush‑hammered
• Dimensions (cm): 49 x 49 x 8
• Weight per unit: 180 kg
• Unit of sale: m² (1 m² = 4 slabs)
• Packaging: 9 U / pallet (disposable pallet 110×90)
• Breaking by splitting: 5.2 MPa
• Water absorption: < 6%
• Freeze/thaw resistance: 0.758 kg/m²
• Slip resistance: medium 62
• Standards: NF – EN – 1339; Fascicle 29 of 30 May 2021; NF – 98 335
