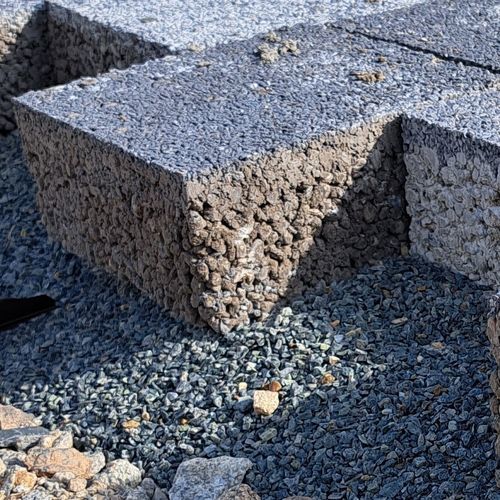

Porous concrete paver PANH4outdoorpatiogarden
Add to favorites
Compare this product
Characteristics
- Material
- porous concrete
- Location
- outdoor
- Room/use
- patio, garden
- Appearance
- stone look
- Color
- gray
- Technical characteristics
- anti-slip, frost-resistant, permeable
- Other characteristics
- for public spaces
- Market
- commercial
- Shape
- square
- Height
65 mm
(3 in)
Description
DESCRIPTION
DIMENSIONS & PACKAGING
MECHANICAL SPECIFICATIONS
STANDARDS
INSTALLATION
MAINTENANCE
technical characteristics / specifications
- Paving blocks 20×20
- POROUS
- Unit of sale (U) = m²
- 1 m² = 22 slabs
DIMENSIONS & PACKAGING
- Length: 20 cm
- Width: 20 cm
- Thickness: 6.5 cm
- Weight (kg/U): 145
- Packaging (U/pal): 9 (disposable pallet 110×90)
MECHANICAL SPECIFICATIONS
- Split tensile strength: 5.2 MPa
- Water absorption: < 6%
- Freeze/thaw resistance: 0.758 kg/m²
- Slip resistance: average 62
STANDARDS
- NF – EN – 1339
- Fascicule 29 of 30 May 2021
- NF – 98 335
INSTALLATION
- Install between +5°C and +30°C on a sound substrate.
- Mortars are prepared or supplied as work progresses.
- The bedding mortar is leveled with a straightedge and laid in succession; thickness ≈ 4 cm (as uniform as possible).
- Humidify the slabs in hot weather.
- Mix products of different colors/shades from different batches on site.
- Leave joints between slabs; complete joints with mortar no earlier than 24 h and no later than 72 h after laying; minimum width ≈ 5 mm (reduced as much as possible without compromising geometry).
- Clean the pavement immediately after jointing to avoid any film or deposits on the slab surface.
- Provide movement joints in accordance with regulatory requirements (10 m linear or 20 m²).
MAINTENANCE
- Original colours are very stable; minimal maintenance with natural patina.
- Applying a mineraliser facilitates cleaning and extends the life of the original surface appearance.
- Not recommended: high-pressure cleaners and acidic products (risk of irreversible alterations).
- Use de-icing salts in reasonable quantities, avoiding excessive residual accumulation.
technical characteristics / specifications
- Unit of sale: m² (1 m² = 22 slabs)
- Dimensions: 20 x 20 cm
- Thickness: 6.5 cm
- Weight per unit: 145 kg
- Packaging per pallet: 9 units (disposable pallet 110×90)
- Split tensile strength: 5.2 MPa
- Water absorption: < 6%
- Freeze/thaw resistance: 0.758 kg/m²
- Slip resistance: average 62
- Standards: NF – EN – 1339; Fascicule 29 of 30 May 2021; NF – 98 335
