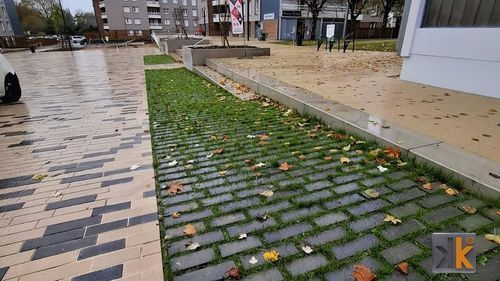

Stone paver PAFH6outdoorflamedfrost-resistant
Add to favorites
Compare this product
Characteristics
- Material
- stone
- Location
- outdoor
- Finish
- flamed
- Technical characteristics
- anti-slip, frost-resistant
- Shape
- rectangular
- Height
80 mm
(3 in)
Description
DESCRIPTION
GEOMETRIC SPECIFICATIONS
MECHANICAL SPECIFICATIONS
STANDARDS
INSTALLATION
MAINTENANCE
APPEARANCE
Flamed stone finish
Characteristics / technical specifications
- Paving stones 12×30
- Flamed stone finish
- Selling unit (U) = m²; equivalence: 1 m² = 28 pieces
- Packing (m²/pallet): 7.6 (lost pallet 110×90)
GEOMETRIC SPECIFICATIONS
- Length: 30 cm
- Width: 12 cm
- Thickness: 8 cm
- Weight: 133 kg/m²
MECHANICAL SPECIFICATIONS
- Breaking strength by splitting (MPa): 4
- Water absorption: < 6 %
- Freeze/thaw resistance: 0.2 kg/m²
- Slip resistance: average 54
STANDARDS
- NF – EN – 1339
- Fascicule 29 dated 30 May 2021
- NF – 98 335
INSTALLATION
- Instructions of NF P 98 335 and fascicule 29 of the CCTG prevail.
- Installation is performed between +5°C and +30°C on a sound substrate.
- Mortars are prepared or supplied as work progresses.
- The mortar bedding is leveled with a screed and executed progressively. Its thickness should be as uniform as possible (~4 cm).
- Units should be dampened, especially in hot weather, and mixed if coming from different batches.
- Joints are left between units. Pointing with mortar is carried out no earlier than 24 h and no later than 72 h after laying. Minimum joint width: 5 mm.
- Movement joints must be provided according to standards (10 m linear or 20 m²).
- Immediately after jointing, the pavement must be cleaned to avoid any film or deposit on the surface.
MAINTENANCE
- Original colors are very stable; minimal maintenance required.
- Application of a mineral sealer will ease cleaning and prolong the appearance life.
- Not recommended: high-pressure cleaners and acidic products (risk of irreversible alterations).
- Use de-icing salts sparingly, avoiding excessive stagnant residues.
APPEARANCE
Flamed stone finish
Characteristics / technical specifications
- Selling unit: m² (1 m² = 28 pieces)
- Dimensions: 30 × 12 cm
- Thickness: 8 cm
- Weight: 133 kg/m²
- Packing: 7.6 m² / lost pallet (110×90)
- Breaking by splitting: 4 MPa
- Water absorption: < 6 %
- Freeze/thaw resistance: 0.2 kg/m²
- Slip resistance: average 54
- Standards: NF – EN – 1339 ; NF – 98 335 ; Fascicule 29 dated 30 May 2021
