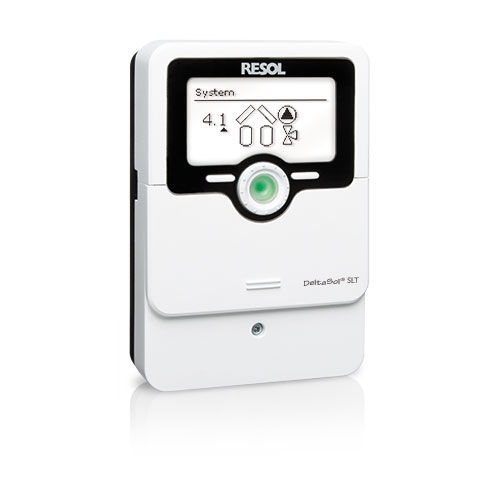

The DeltaSol® SLT effortlessly controls even complex systems and enables adaptation to the individual system requirements. Numerous pre-programmed optional functions such as thermal disinfection or zone loading can be combined and parameterised. It is also possible to directly choose from 27 pre-programmed basic systems. The operation via 2 main buttons and 1 adjustment dial, the Lightwheel®, follows the well-known operating concept. The manual mode and the holiday function can be activated by pressing a single button
4 relay outputs (incl. 1 potential-free extra-low voltage relay)
4 inputs for Pt1000 or Pt500 temperature sensors
Input for 1 analogue Grundfos Direct Sensor™
1 V40 impulse input (also usable as a Pt1000, Pt500 or KTY temperature sensor input)
2 PWM outputs for the speed control of high-efficiency pumps
Numerous pre-programmed optional functions
27 basic system layouts to choose from
Automatic function control according to VDI 2169
MicroSD card slot, LAN interface (optional), mini-USB port
Data logging, easy transfer of controller adjustments prepared and firmware updates via SD card
Max. number of collector fields:2
Max. number of stores:2
Weather-compensated heating circuits:-
External heat exchanger:check
Speed control of standard pumps:check
Speed control of HE pumps:check
■ via integrated PWM output:check
■ via PSW adapter:check
Hardware
Temperature sensor inputs:4 (54)
Sensor type:Pt1000, Pt500, KTY
Inputs for Grundfos Direct Sensors™:analogue
Input for CS10 irradiation sensor:-
Impulse inputs for V40 flowmeter:1
Relay outputs in total:4
■ semiconductor relays (speed control):3 (3)
