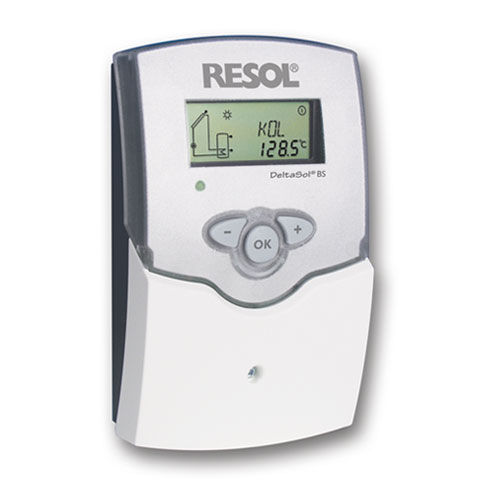

The RESOL controllers for standard solar thermal systems. The DeltaSol® BS series provides a clear operating concept. The intuitive commissioning menu leads you through the initial configuration in only a few steps. The system selected is shown on the display, the status of the individual components is indicated by means of flashing codes. The DeltaSol® BS series is available in 3 versions, depending on the demands. Details concerning the number of the relays as well as additional functions are shown in the technical data.
DeltaSol® BS series
Drainback option
Heat quantity measurement
Function control
Commissioning menu
Unit °C and °F selectable
HE pump control via adapter
DeltaSol® BS/4, BS Plus
3 basic system layouts (DeltaSol® BS/4), 10 basic system layouts
(DeltaSol® BS Plus) to choose from
Tube collector function, thermal disinfection function,
time-controlled thermostat function
Max. number of collector fields:1 [BS/2, BS/4], 21 [BS Plus]
Max. number of stores:1 [BS/2, BS/4], 21 [BS Plus]
Weather-compensated heating circuits:-
External heat exchanger:-
Speed control of standard pumps:check
Speed control of HE pumps:check
■ via integrated PWM output:-
■ via PSW adapter:check
Hardware
Temperature sensor inputs:4
Sensor type:Pt1000
Inputs for Grundfos Direct Sensors™:-
Input for CS10 irradiation sensor:-
Impulse inputs for V40 flowmeter:-
Relay outputs in total:1 [BS/2], 2 [BS/4, BS Plus]
■ semiconductor relays (speed control):1 (1) [BS/2], 2 (1) [BS/4], 2 (2) [BS Plus]
■ electromechanical relay:-
■ potential-free relay with changeover contact:-
■ potential-free relay with normally open contact:-
■ potential-free high-current relay:-
PWM outputs:-
