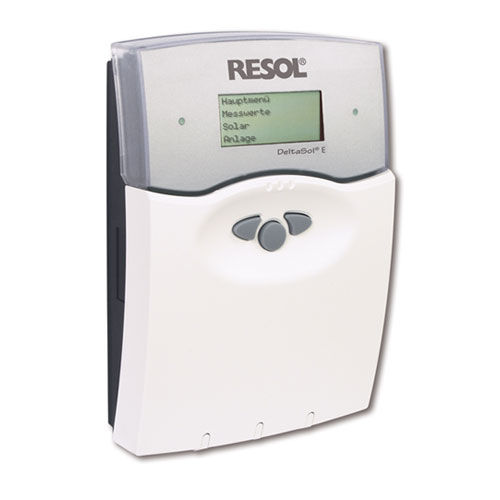

A multitude of adjustable functions and options are possible using 7 relay outputs and 10 sensor inputs for Pt1000, CS10 and V40. Due to its intelligent and easy-to-understand system configuration and its integrated calorimeter, the controller also offers the control of complex systems with up to 4 weather-compensated heating circuits. For data communication and remote maintenance, the controller is equipped with the RESOL VBus®, which permits two-way communication between modules, PCs or dataloggers.
7 basic systems to choose from
10 sensor inputs
7 relay outputs
Pump speed control, solar operating hours counter
and heat quantity measurement
Internal calorimeter
4 heating circuits can be activated
Function control
RESOL VBus®
User-friendly operation
Energy-efficient switching-mode power supply
Max. number of collector fields:2
Max. number of stores:4
Weather-compensated heating circuits:1 (43)
External heat exchanger:check
Speed control of standard pumps:check
Speed control of HE pumps:check
■ via integrated PWM output:check
■ via PSW adapter:check
Hardware
Temperature sensor inputs:10
Sensor type:Pt1000
Inputs for Grundfos Direct Sensors™:-
Input for CS10 irradiation sensor:check
Impulse inputs for V40 flowmeter:1
Relay outputs in total:7
■ semiconductor relays (speed control):6 (3)
electromechanical relay:-
■ potential-free relay with changeover contact:1
■ potential-free relay with normally open contact:-
■ potential-free high-current relay:-
PWM outputs:3
■ convertible to 0-10 V:3
Real-time clock:check
Data interface:VBus®
