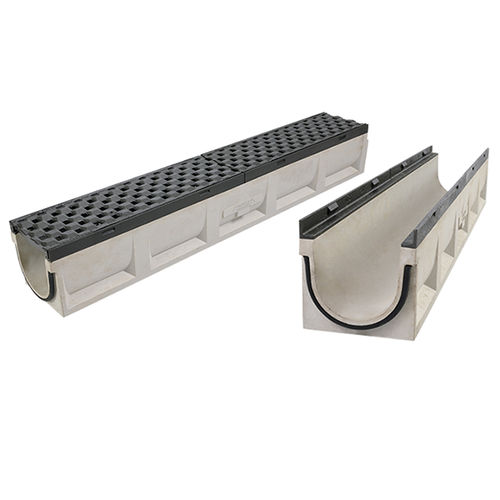

Slot drainage channel FORTIS

with gratingconcretecast iron grate

> dewatering channel for linear drainage under heavy-duty conditions > choice of steel, stainless steel or cast iron frame > watertight, high-strength and chemically resistant material > highly leak-tight surface structure > relatively low weight > tongue and groove system with integrated rubber seal > compatible heavy-duty mesh and longitudinal bar gratings; matching cast gratings available for cast frames An enormous amount of force acts on areas exposed to particularly high wheel loads – due to lorry traffic, for example. The installed dewatering systems have to be able to cope with this at all times, which is why DIN 1433 “Drainage channels for vehicular and pedestrian areas” specifies load classes. Our “Fortis” concrete channel is designed for classes A 15 to E 600 and can therefore be relied upon to withstand loads of up to 60 tons. The heavy-duty dewatering channel is used, among other things, in driveways, roads, courtyard surfaces in front of buildings and parking areas, where it ensures reliable linear drainage. Rainfall can flow over concrete inlets that feature run-off pipes. A direct connection to a shaft or existing channel is also feasible. The channel’s appropriately dimensioned concrete framing comprising base and edge restraints ensures load transfer. The channel body is made of high-strength, waterproof concrete made by Richard Brink. It has wall and floor thicknesses of 20mm. The chosen concrete matrix guarantees wear resistance to various chemical influences while the leak-proof surface structure enables rain water to run straight off. The moulded frame is available either in stainless steel, hot-dip galvanised steel or cast iron.
