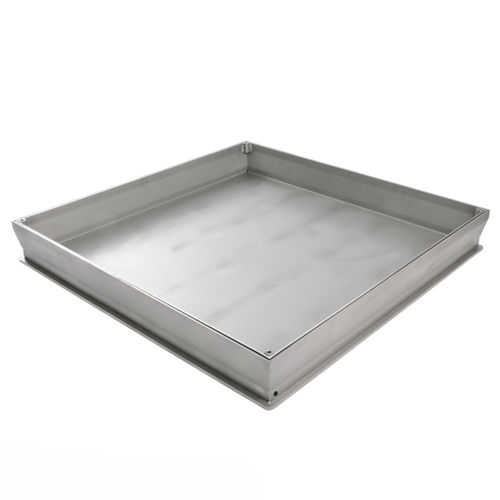

Stainless steel manhole cover SOLID

squareprefab

manhole covers for car or truck loads that can be paved over surfacing can be inserted immediately highly stable thanks to reinforcement elements can be installed over existing gully covers easy inspection Description “Solid” manhole covers: the name says it all. Developed for heavy-duty use, our products are made from either stainless steel or hot-dip galvanised steel depending on the design and have no trouble withstanding the long-term impact of cars and even trucks driving over them. They are available based on either load class B 125, with a material thickness of 3 mm, or load class D 400, with a thickness of 6 mm. The “Solid” covers help ensure that service and utilities shafts, e.g. for electricity, water, telephone connections or waste water, are securely sealed. The products can also be installed over existing gully covers, providing a convenient, stylish solution with a high-quality finish. Flanges are incorporated along both the inner and outer sides of the frame. The outer flange can be paved down using slab material found in the surrounding area, while the inner flange features an EPDM gasket and forms the supporting base of the paving tray. The gasket reliably stops precipitation from seeping through the frame and also serves as an odour trap. Additional drainage holes in the tray and outer frame make sure any accumulating water is fed into the substrate of the adjacent paved areas, successfully preventing pooling. Together with the paved inlay, which has a standard internal height of 80 mm, the manhole cover blends in perfectly with its surroundings. The existing slab material is simply fixed in place or inserted over a base layer if needed.
