intrusion detector / wall-mounted / commercial / PIR

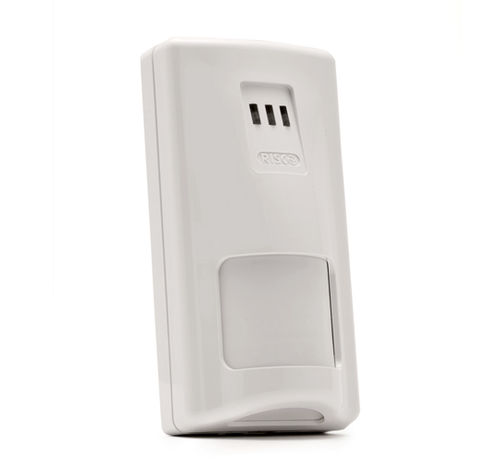

IWISE® QUADSEQ GRADE 3

{{requestButtons}}

Characteristics

  • Type:

    intrusion

  • Installation:

    wall-mounted

  • Sector:

    commercial

  • Other characteristics:

    PIR, window

Description

The iWISE® QUADSEQ G3 contains two independent detectors in a single housing. When mounted in the corner of a room, one detector covers the two walls (side area), while the second detector covers the center of the room. When an intruder enters the room via a door or window, the side area triggers. When the intruder then moves to the center of the room, the second detector triggers, providing a sequentially confirmed alarm according to UK APCO: DD243 requirements.

Features

•Two PIR detectors in a single housing with separate alarm outputs
•Coverage 12m (40’)
•Built-in EOL resistors, jumper selectable
•Cover and wall/corner tampers
•Two non-overlapping coverage patterns
•Active IR Anti-mask
•Opto relays for defeating large magnets
•RK800QS ¡WISE QUADSEC, Grade 3
