Lamp diffuser
Made of polymethyl methacrylate (PMMA)
Two color versions
Painted black and anodized inox
Module cover
Diffusing light
Overvoltage protection
Increases the immunity of the luminaire to electrical discharges up to 15 pulses at 10 kV
Application
1. Pedestrians
2. Pedestrian crossings
3. Bicycle routes
4. Residential roads (internal)
5. Petrol station
6. Industrial areas
7. Surrounding office buildings

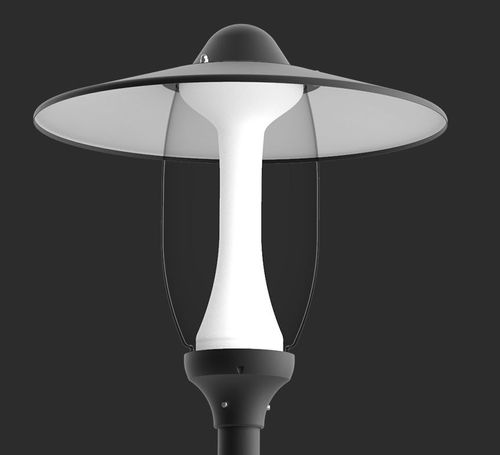

Application: parks, pedestrians, bicycle routes
Assembly: pole top mounted or on extension arms with ø60 x 50 mm ending
Stopień ochrony: IP 66
Material: cap – formed aluminium sheet
diffuser – transparent (PMMA)
base – high-pressure die-casted aluminium alloy, painted
Colour: AURIS LED black
luminaire base - black paint coated, RAL 9005
cap - black paint coated, RAL 9005
cover - black anodized
AURIS LED inox
luminaire base, cap, cover - inox anodized
Expected useful lifetime: L90F10 – 50 000 h, L80F20 – 100 000 h
CRI: >80
Corrective factor S/P: — for 2700K, 4000K; 1,45 for 2700K, 3500K
Input voltage frequency: 50/60Hz
Power factor: ≥0.9
Inrush current: : <30 mA for 18W
