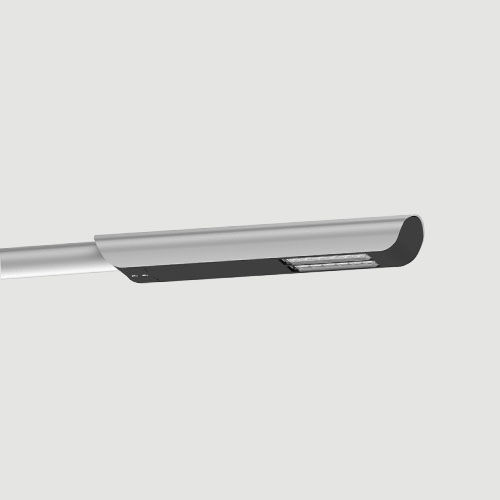

Urban lamp post CUDDLE II

contemporaryanodized aluminumLED

Assembly mounted on extension arms with 060 x 1 ending Overvoltage protection Increases the immunity of the luminaire to electric discharges up to 1 5 pulses at 10 kV Anodized aluminium I Inox / black color with anticorrosive and decorative propertiesh Driver Philips Xitanium High-performance and constant current power supply with 7 programmable functions according to customer requirements available functions: - adjustable output current - programmable time programs - temperature control on the module - power regulation of the luminaire wth output voltage Replaceable LED Waterproof LED mcHdule Equipped with 24 LEDs or 64 LEDS, available in 6 optical circuits Application: motorways and expressways, urban roads, residential roads (internal), pedestrians, parkings Assembly: on extension arms with ø60 x 100 mm ending Ingress protection: IP 66 for the optical part and the driver Material: anodised aluminium alloy Colour: inox / black Optical system: PMMA optics, interchangeable LED module, PC-UV diffuser Number of LEDs: 24 for 48W, 60W, 72W; 64 for 96W, 120W, 144W, 192W Expected useful lifetime: L90F10 – 50 000h, L80F20 – 100 000h CRI: >70 for 5000K, 4000K; >80 for 3500K, 2700K Input voltage frequency: 50/60Hz Power factor: ≥0.95 Inrush current: : 46A / 250µs for 48W, 60W, 72W; 58A / 340µs for 96W, 120W, 144W; 80A / 225µs for 192W
