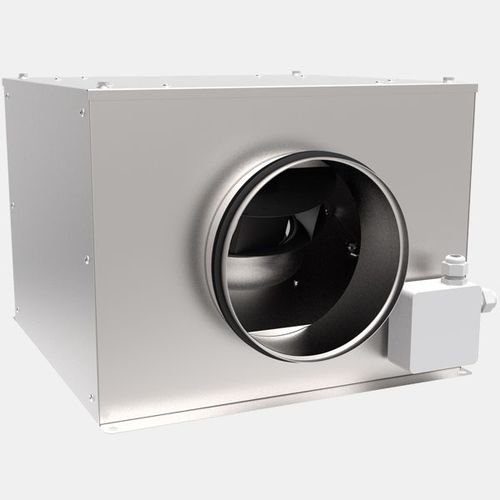

Smoke extractor fan Z...G

ductcommercialindoor

size: 125 - 400 mm (tube diameter) insulated casing highly efficient EC technology can be used in all mounting positions easy cleaning and maintenance integrated control (EC controller) very low noise The casing is made of galvanised sheet steel. The 40 mm thick mineral fibre plates inserted act as sound insulation. The cover can be simply screwed off making the fan area easily accessible for cleaning and maintenance. The fan inside can be disassembled. The fans are driven by an external rotor EC motor, fitted in the centrifugal impeller. EC Zeroboxes of type EVOLUTION up to size 250 have a forward curved centrifugal impeller, from size 315 backward curved centrifugal impellers are used. All sizes of type REVOLUTION have backward curved impellers. The electrical connection is made through a terminal box mounted at the housing. The built-in motor protection is signalled via a digital output or a pulse output. Rigid folded spiral-seam tube (Spiro), flexible aluminium or plastic tubes with standardised diameter can be used. Zeroboxes can be used in all mounting positions. When used over several floors of a building, the local fire safety regulations must be observed.
