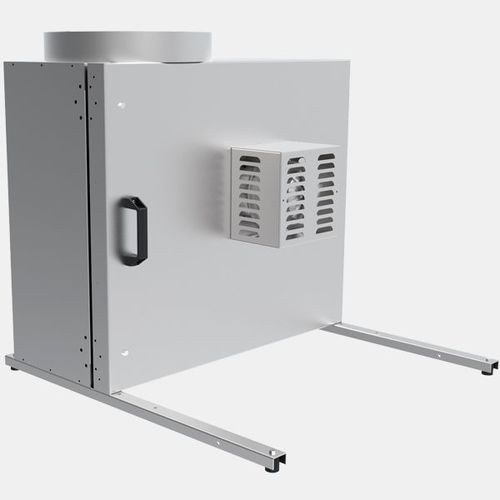

Exhaust fan KBA

ductcommercialkitchen

flow rates up to 8,200 m³/h size: 180 - 500 mm (impeller diameter) motor out of air stream conveying liquid temperatures up to 100°C possible for the exhaust of dirty and greasy air efficiency-optimised casing-impeller combination high efficiency door hinge DIN right/left can be variably converted The casing consists of a double-skinned galvanised sheet steel with a non-flammable rock wool acoustic and moisture insulation. The motor-impeller unit can be pivoted for cleaning purposes by the generous operating door. The door hinge DIN right can be easily be converted to DIN left. Connecting pieces fit standard pipes. up to size 280 forward curved impeller made of galvanised sheet steel from size 315 backward curved impellers made of aluminium The impellers and the hubs as a unit are dynamically balanced on two levels with the rotor according to quality level G 2,5 / G 6,3 as per DIN ISO 21940-11. The electrical connection is on the terminal box already loosely pre-assembled on the cable. The nominal voltage is indicated on the type shield and will allow for a voltage tolerance of ±10%.
