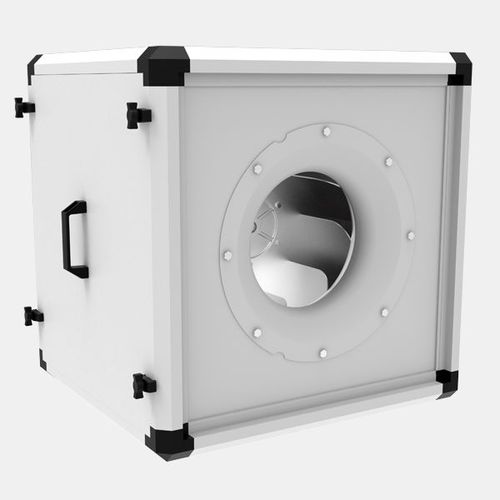

Duct exhaust fan EC-UNO-ME

commercialkitchenplastic

size: 355 - 630 mm (impeller diameter) motor out of air stream high conveying media temperatures possible backward curved impellers integrated control system (EC controller) discharge upward (standard), operating side can be exchanged with built-in emergency stop The flexible and compact EC Unoboxes ME are designed to handle air volumes with higher temperatures. A removable service door, an integrated drip pan with condensation drain nozzle, plus special sealing lips are included. The housing supporting frames are double chamber aluminum profiles with corners made of plastic and double skinned (20 mm) galvanized sheet steel panels insulated with non-inflammable, noise and temperature insulating fibreglass mats. Optionally, the outlet side (at the top or the side) can be selected. A changing of the air outlet and side panel at the installation site is possible at any time by setting of the flexible panels. Backward curved high-performance impellers made of aluminium are used. The impellers together with the impeller hub are dynamically balanced on two levels with the rotor according to quality level G 2,5 / G 6,3 as per DIN ISO 21940-11. The integrated motor protection is signaled via alarm relay. The electrical connection takes place on the preassembled isolator switch in the housing. In the version „open-loop control“(standard) the speed is adjusted via 0-10V Signal or a potentiometer (accessory). The connection hereto takes place directly at the EC-Controller inside the EC Unobox ME.
