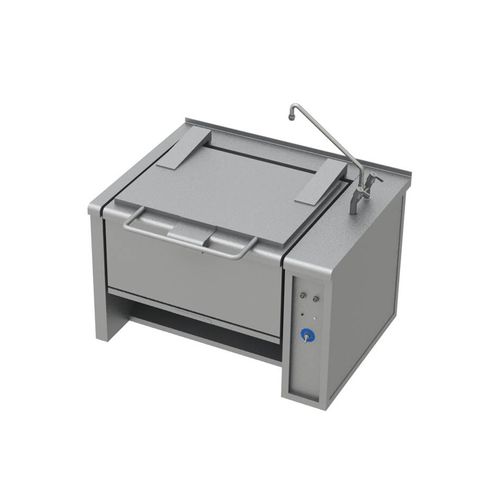

Electric tilting bratt pan 50 dm² - 125 litres - 16.5 kW - Width 1200 mm - Rectangular kettle, 250 mm deep - Bimetallic heat diffusing base (8 mm + 2 mm) - Double walled, hinged and balanced lid - Electric tilting by actuator - Hot and cold water mixer tap - Shielded stainless steel heating elements controlled by energy controller
Presentation
SBM 50 G - M or SBM 50 E - M
Tilting bratt pans 50 dm2
gas or electric - Width 1200 mm
SBM 80 G - M or SBM 80 E - M
Tilting bratt pans 80 dm2
gas or electric - Width 1700 mm
Description
•Kettle with rounded corners and bimetallic heat diffusing
base made of 8 mm mild steel and 2 mm of 304 stainless
steel on the cooking side.
•304 stainless steel clip, 25/10 thick.
•Heat insulated by means of rock wool panels and a high
density insulating material.
•Double walled 304 stainless steel lid which is hinged and
balanced.
•Broad handle made of stainless steel tube.
•1/4 turn hot / cold water mixer tap, diameter 20 x 27, with
a swivelling spout.
•Electrically tilted by actuator.
•When the kettle is tilted, a safety microswitch controls the
extinguishing and starting up of the heating.
Options: -hopper for the spout to allow the GN 1/1 trays to
be used, designed to hold cooking ingredients
such as stocks for sauces,
-digital controls -Electronicthermostatwithdigital
display (50 °C - 300 °C),
-water spout off-set,
-shower and flexible hose on bracket, to connect
to hot / cold water.
Gas equipment
•Stainless steel sheet firebox.
•Allgasstainlesssteellinearmulti-burnerswiththermocouple
and pilot light safety device, controlled by a regulation unit.
An energy controller controls the heating.
