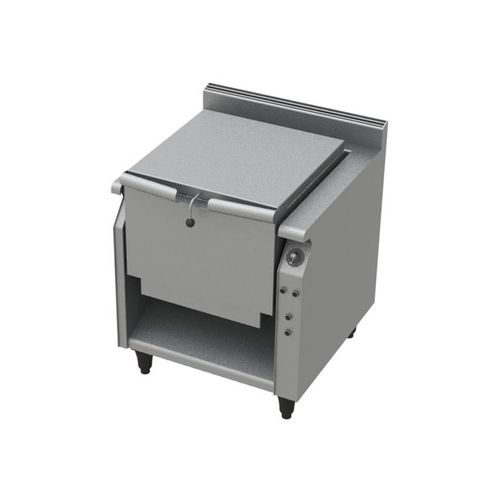

Gas bratt pan SBM 35 G - RC8

commercial

Gas tilting bratt pan 35 dm² - 80 litres - 12.2 kW - Width 800 mm - Rectangular kettle, 250 mm deep - Bimetallic heat diffusing base (8 mm + 2 mm) - Double walled, hinged and balanced lid - Electric tilting by actuator - Hot and cold water mixer tap - Burners with electrical ignition by continuous sparking and flame monitoring by ionization Description •304 stainless steel top, 30/10 thick. •Stainless steel side structures, 20/10 thick. •Compact elements to combine with any element of the range (compact, lower and upper element). •Stainless steel control panel with ergonomic profile. •Rounded front edges. •Top with back plate. •Stainless steel façade, 10/10 thick. •Standard 150 mm high feet WEIGHT 200 kg (SBM 35 G) 240 kg (SBM 50 G) 190 kg (SBM 35 E) 230 kg (SBM 50 E) Tilting bratt pan •Rectangular kettle with rounded corners and bimetallic heat diffusing base made of 8 mm mild steel and 2 mm of 304 stainless steel on the cooking side. •304 stainless steel clip, 25/10 thick. •Double walled 304 stainless steel lid, hinged and balanced. •Handle with a knob made of insulated material. •Swivelling water spout controlled by hot / cold water knobs located on façade. •Electrically tilted by a front-hinged actuator. •When the kettle is tilted, the heating casing tilts with the kettle and a safety microswitch controls the extinguishing and starting up of the heating. Note: regarding the water supply to the appliance, the installer shall comply with existing health regulations (e.g. disconnector for certain regions). KETTLE CAPACITY 80 litres (SBM 35) 110 litres (SBM 50) INT. DIMENSIONS OF THE KETTLE L. 630 x W. 540 x D. 250 mm (SBM 35)
