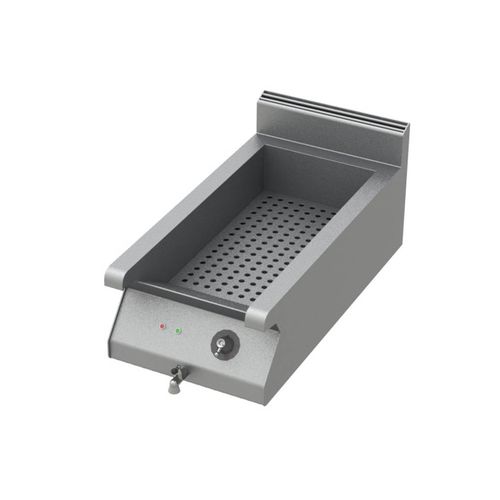

Electric chip scuttle BS AF VF / UPPER ELEMENT - RC8

GN 1/1 electric chip scuttle - 0.75 kW - Drainage on façade - Upper element only - Width 400 mm - Electric heating elements - Energy controller - Front access DESCRIPTION •304 stainless steel top, 30/10 thick. •Stainless steel side structures, 20/10 thick. •Upper elements to put on lower elements, or for "bridge" assembly. •The fryer, because of its drainage under kettle can only be used in "bridge" assembly. •Stainless steel control panel with ergonomic profile. •Rounded front edges. •Top with back plate. WEIGHT NC (FR 12 E) NC (BS AF VF) NC (BS AF VF RC) Fryer •304 stainless steel kettle with surrounded board, 15/10 thick, hermetically sealed on the top with raised edge. •Kettle base sloping towards the front for drainage. •Oil level indicator (min-max). •Drainage by a large diameter round stop tap 33 x 42 (1" 1/4). •304 stainless steel sheet removable lid, 10/10 thick, fitted wih handle. •Basket with support for draining. •Shielded stainless steel heating element. •Oil bath temperature regulation by electronic thermostat. •Solid fat melt cycle. •Safety temperature thermostat with manual reset, for reliable oil overheating protection. •The heating element is in the oil itself and is hinged at the back to make cleaning easier. •A microswitch cuts the electric control circuit when the element is raised. •On / Off and control lamps USEFUL CAPACITY 12 litres BASKET CAPACITY 1.25 kg CHIPS HOURLY OUTPUT 14 kg Chip scuttle •304 stainless steel kettle, 15/10 thick, lowered front for easy access, with no internal parts to make cleaning easier. •Drainage pipe diameter 20 x 27 with same diameter 3/4" stop tap located on the façade.
